Product Overview

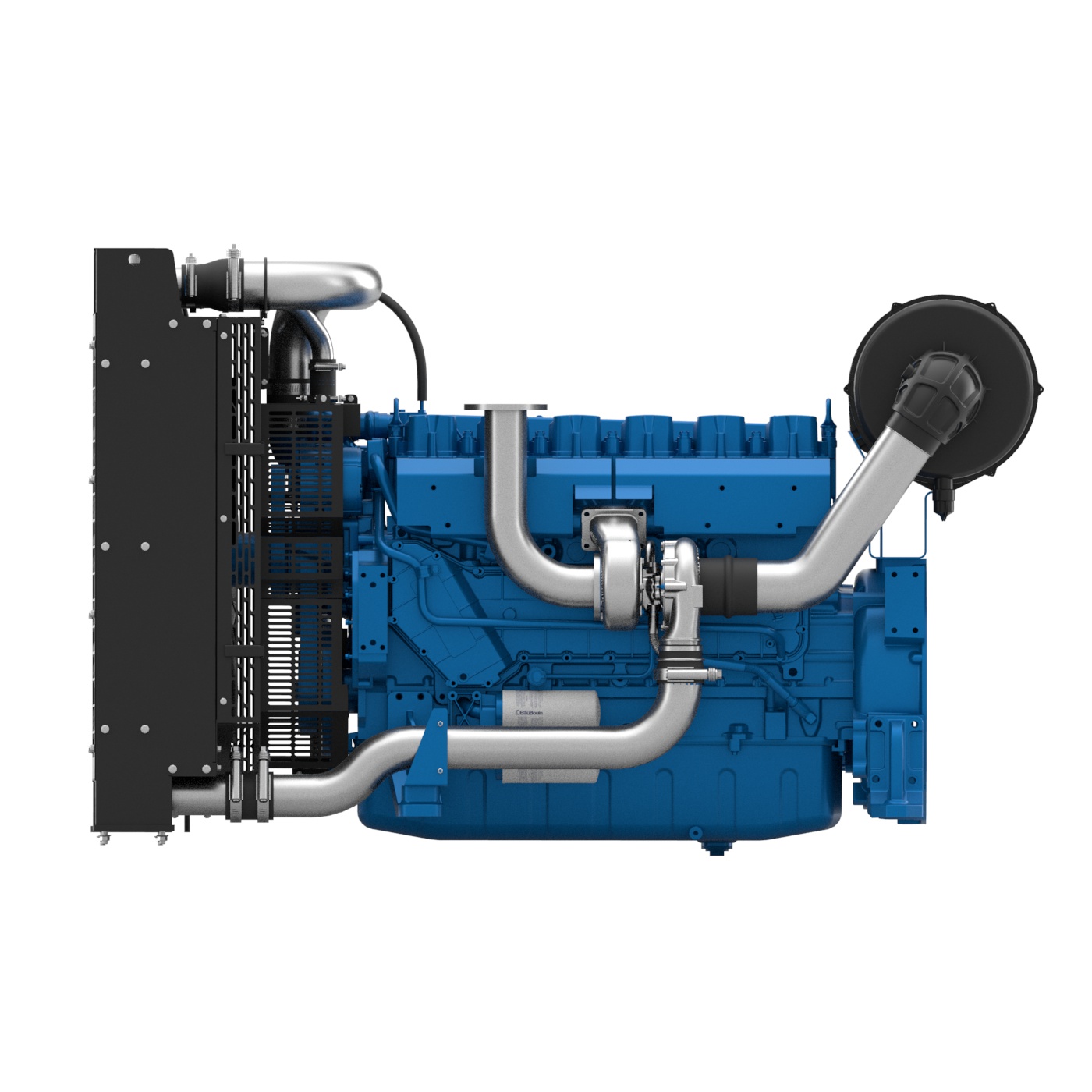

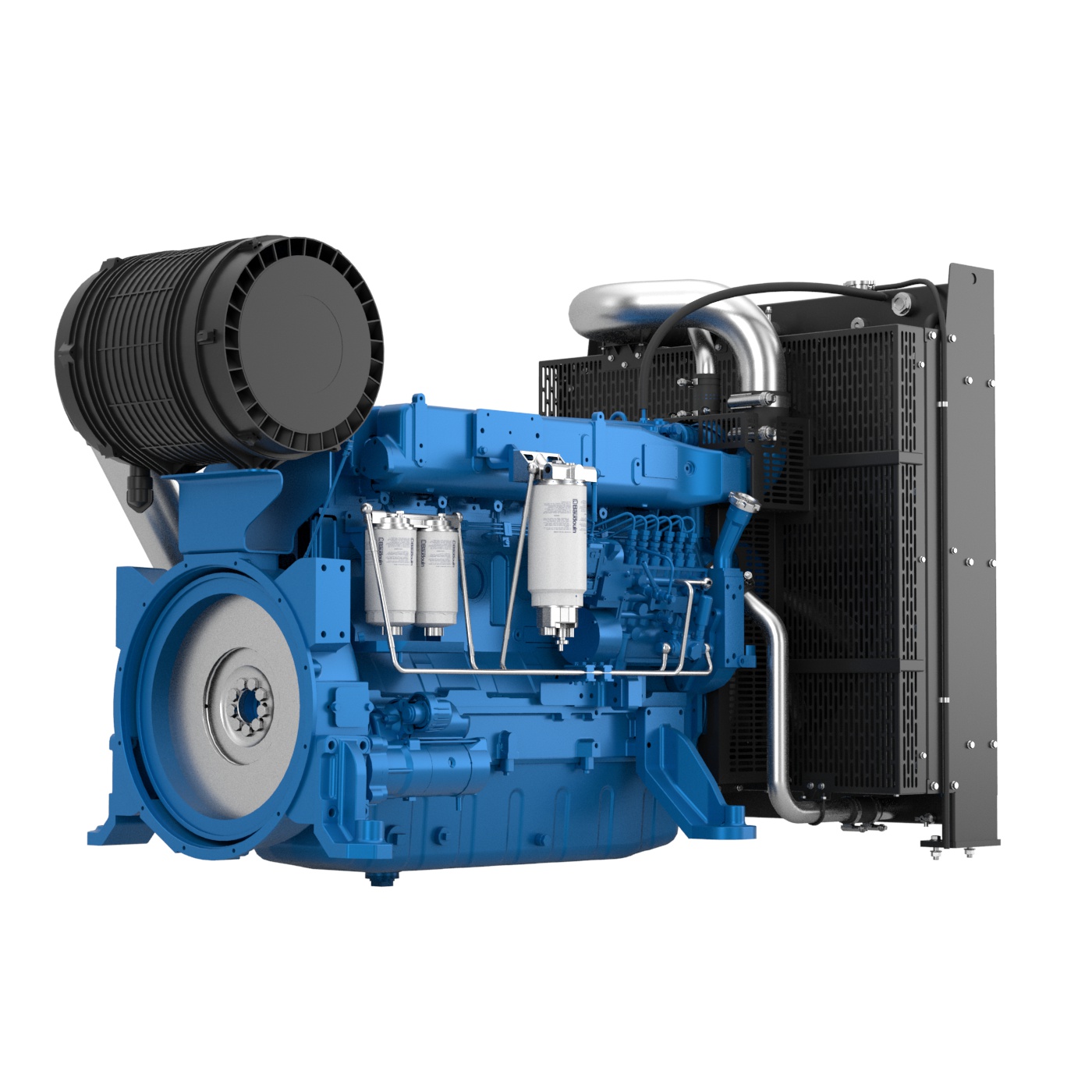

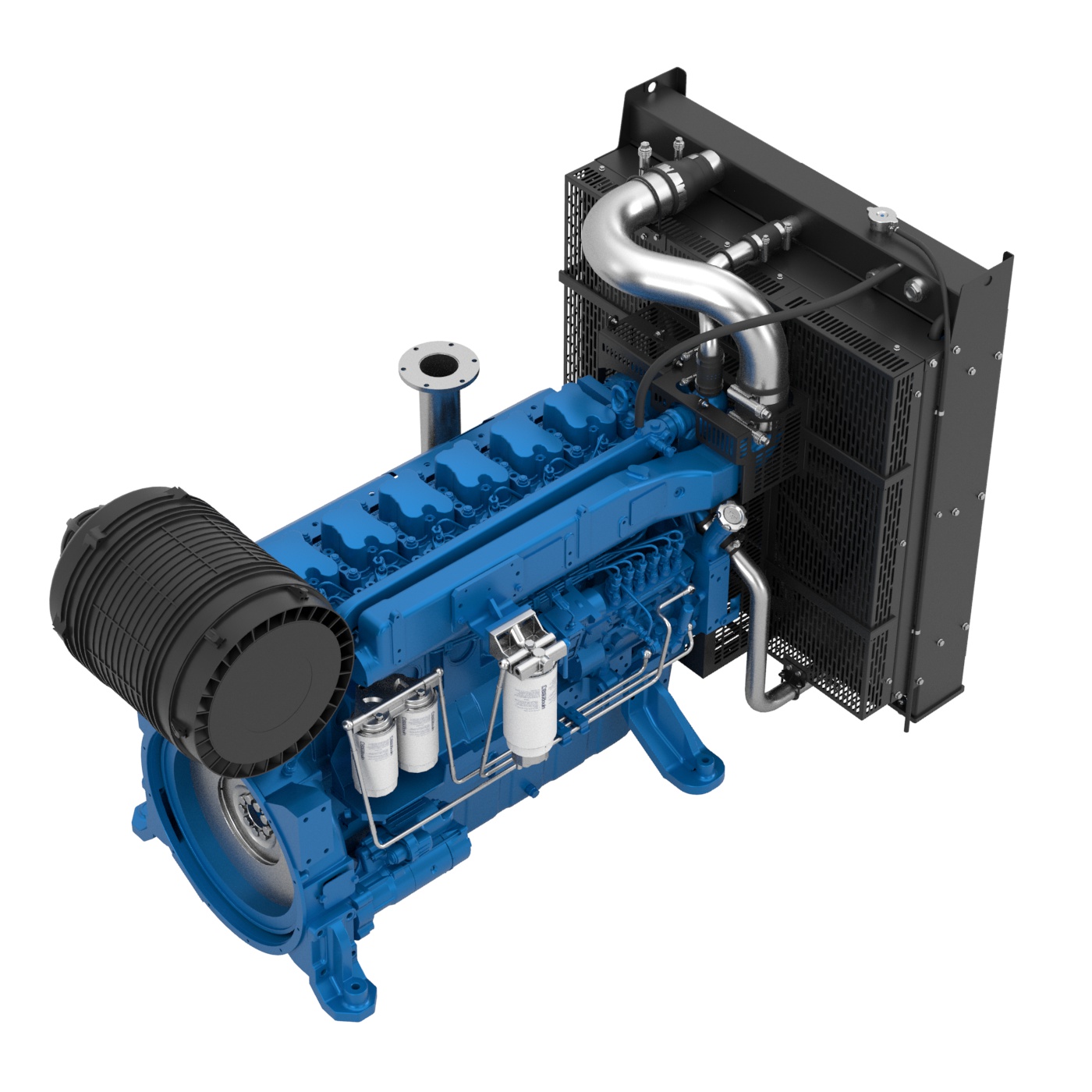

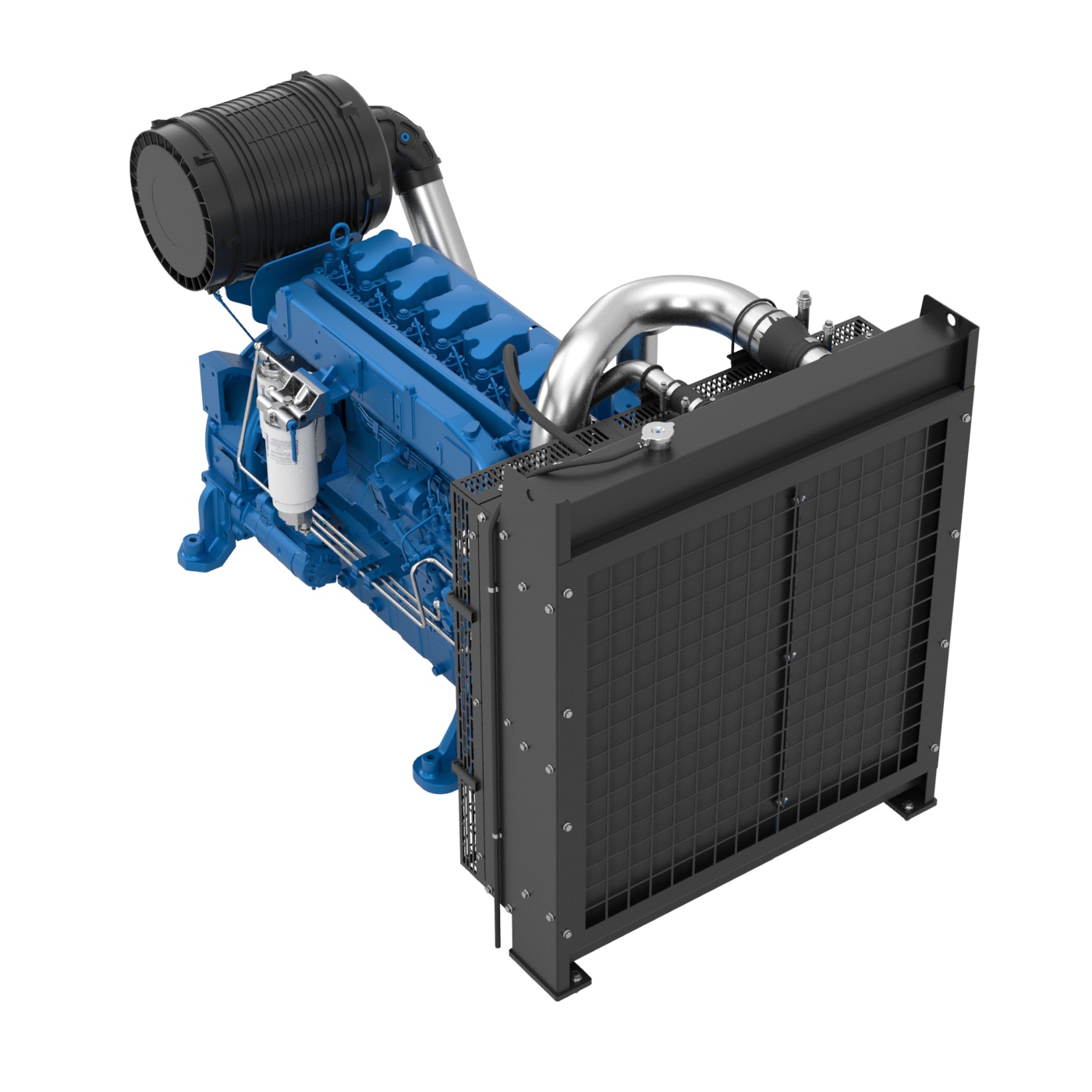

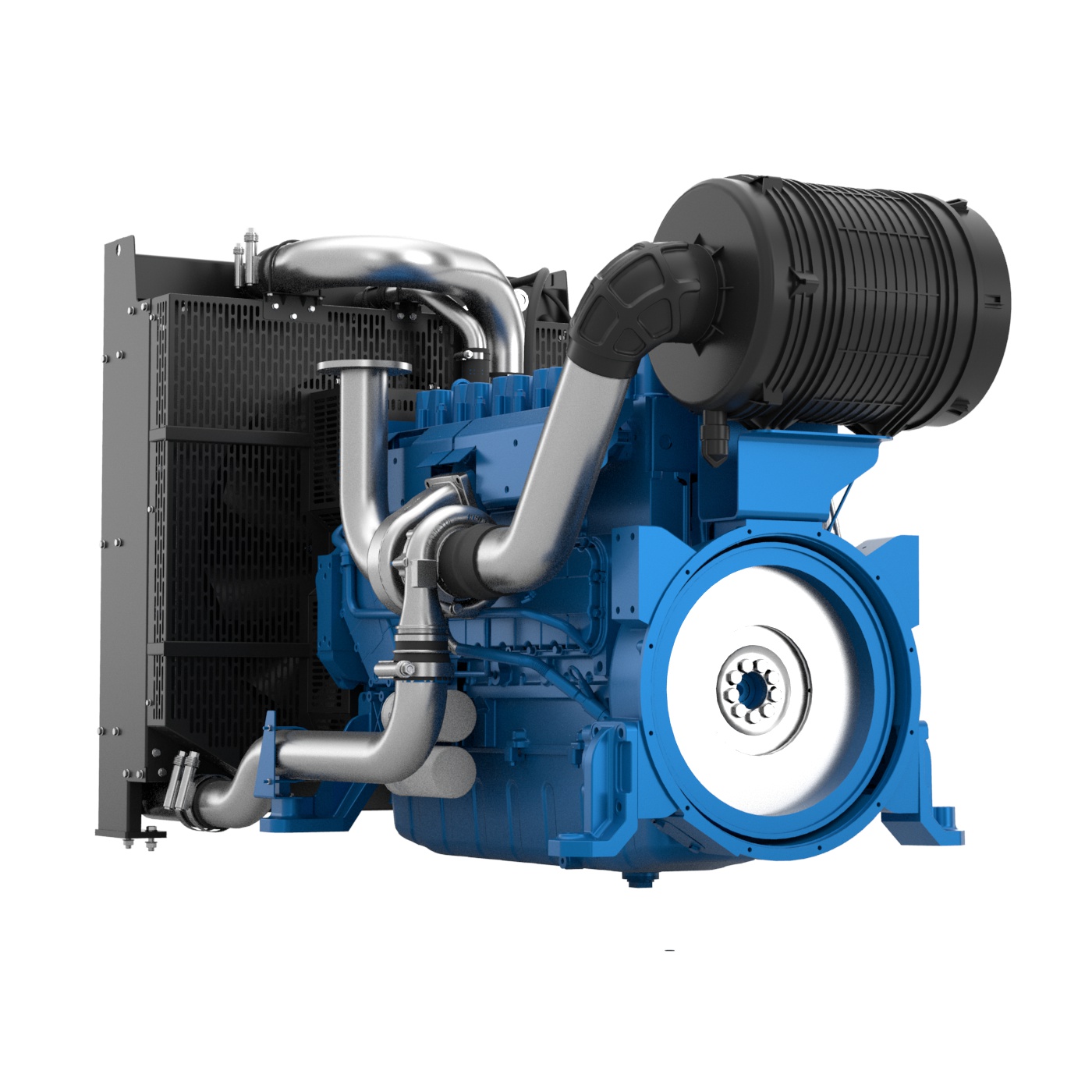

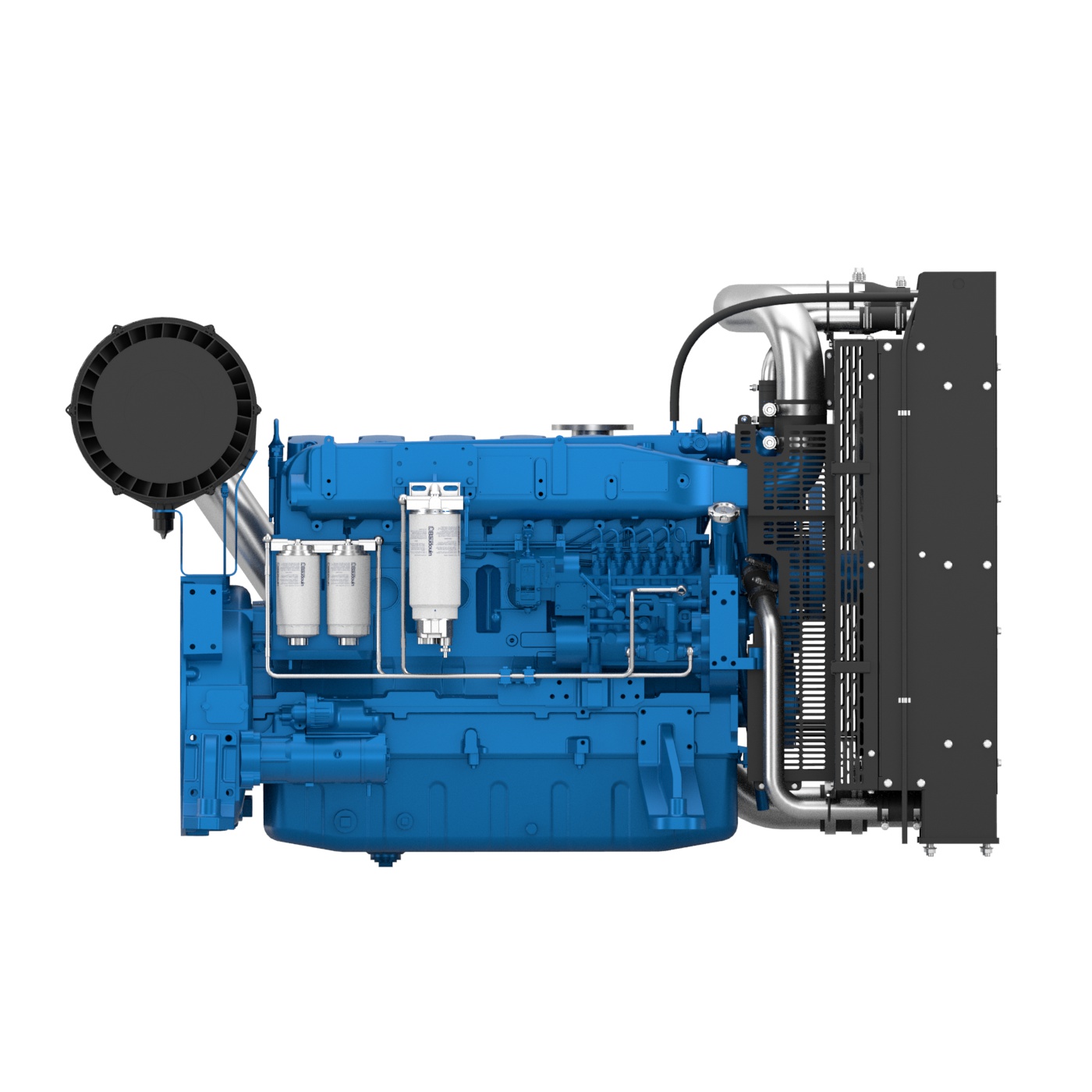

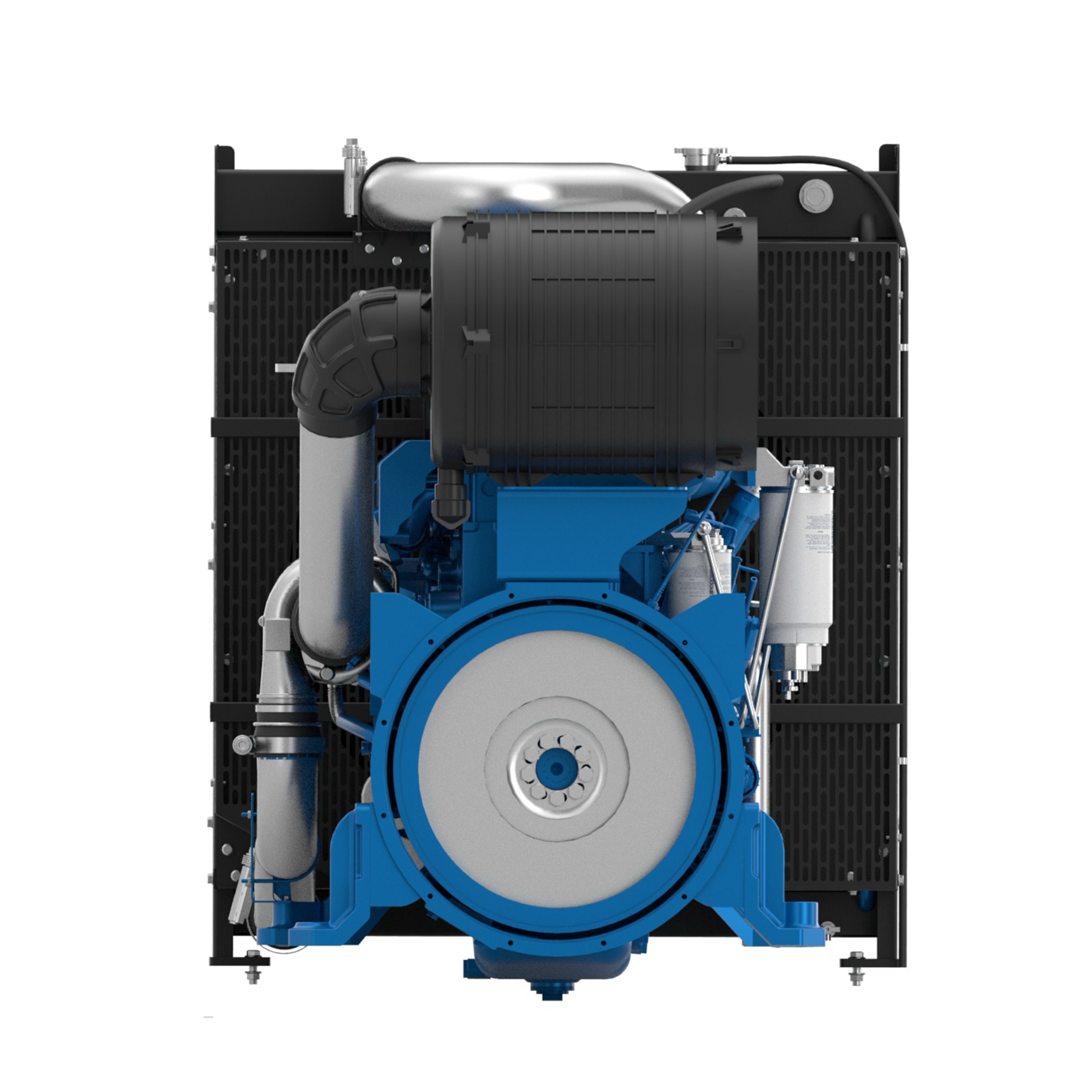

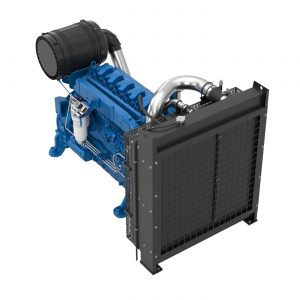

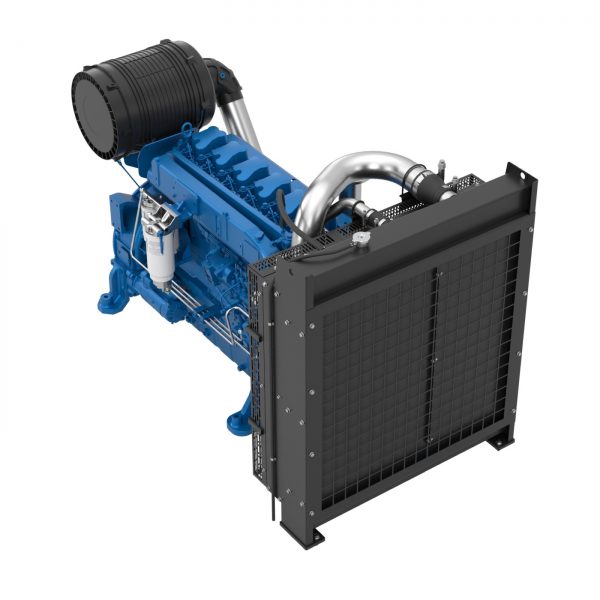

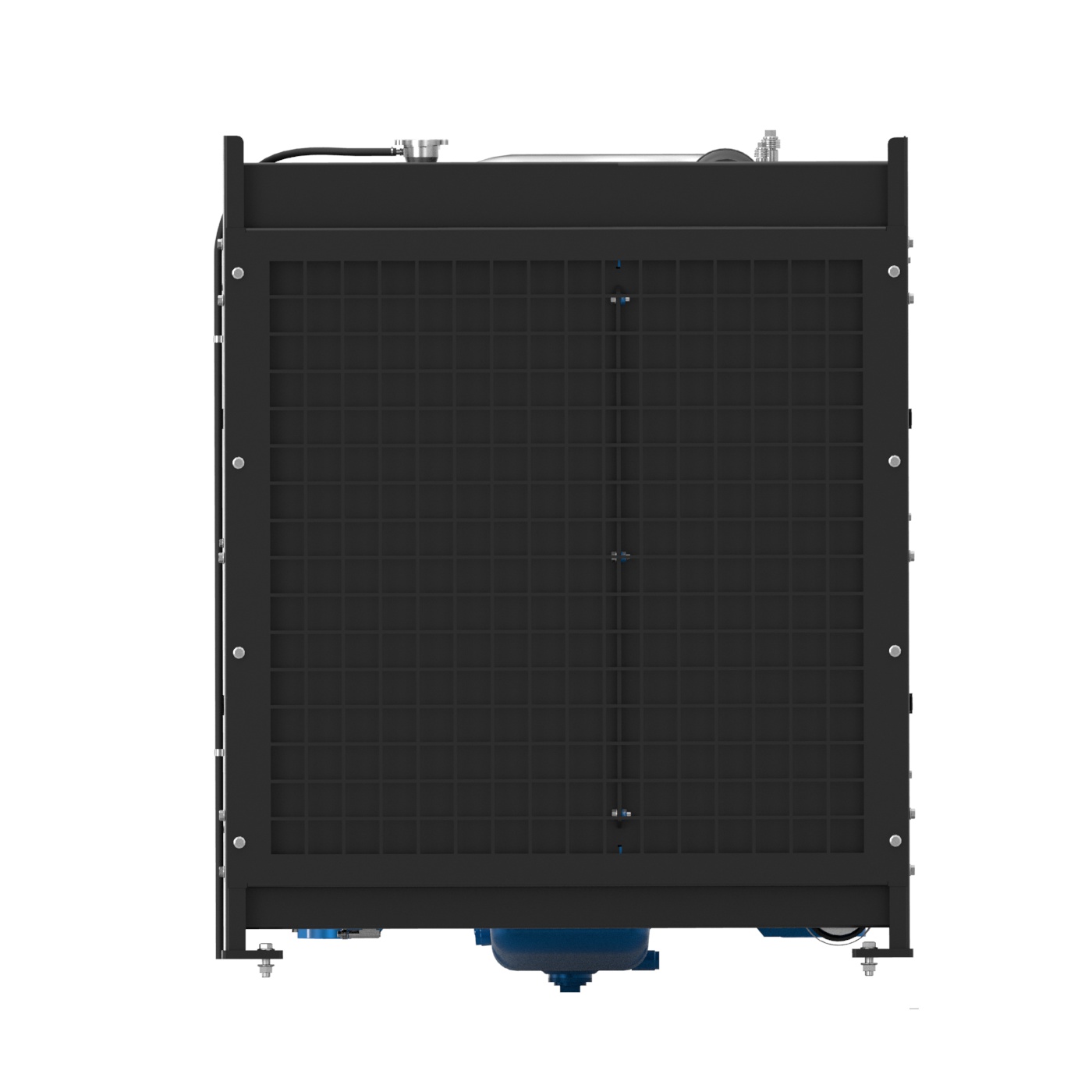

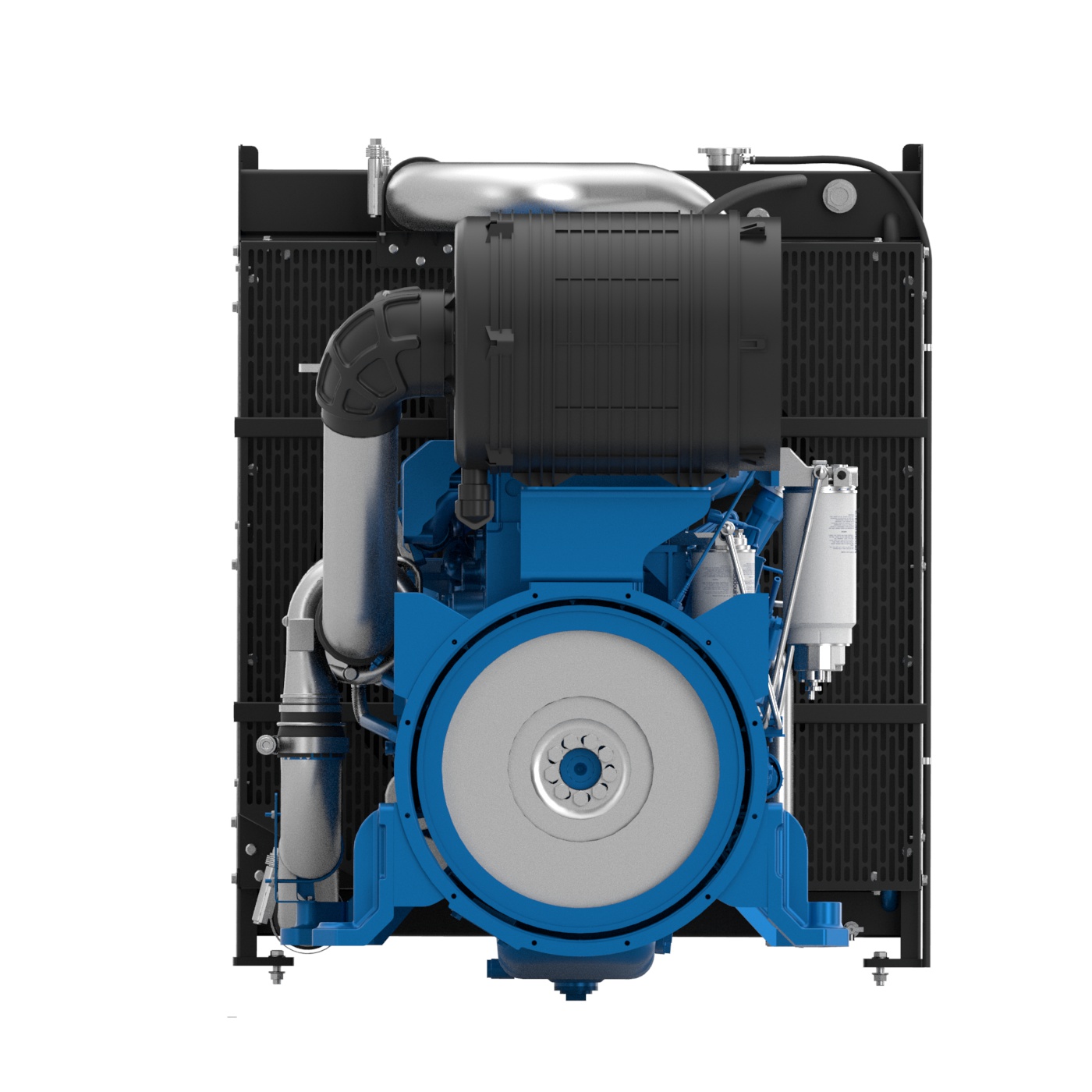

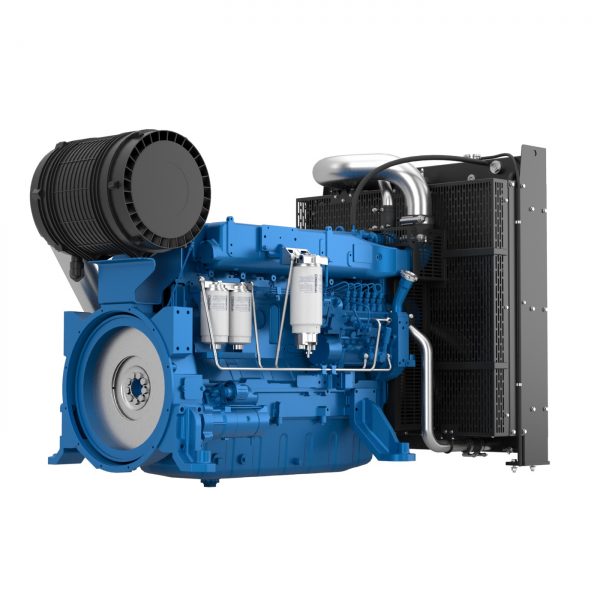

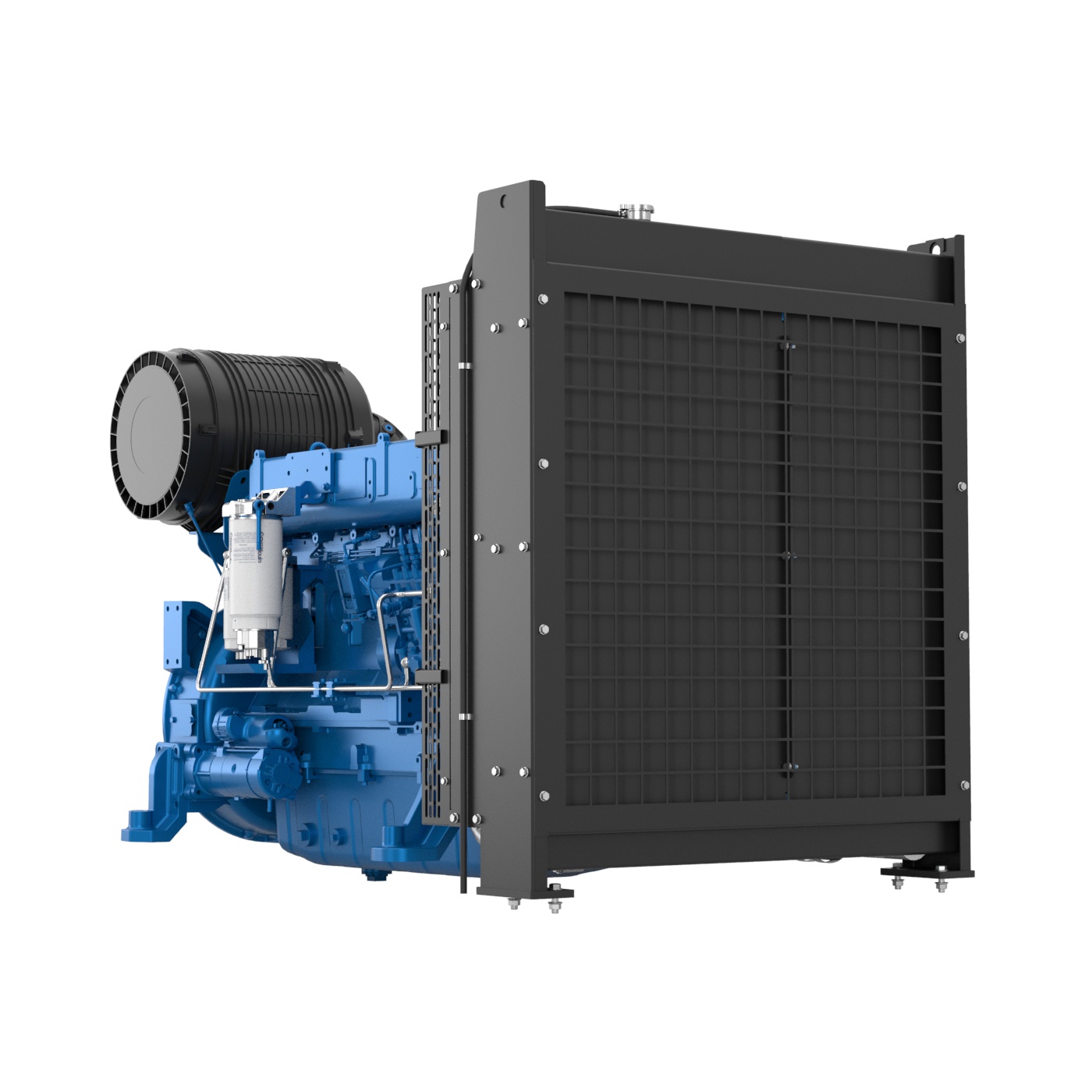

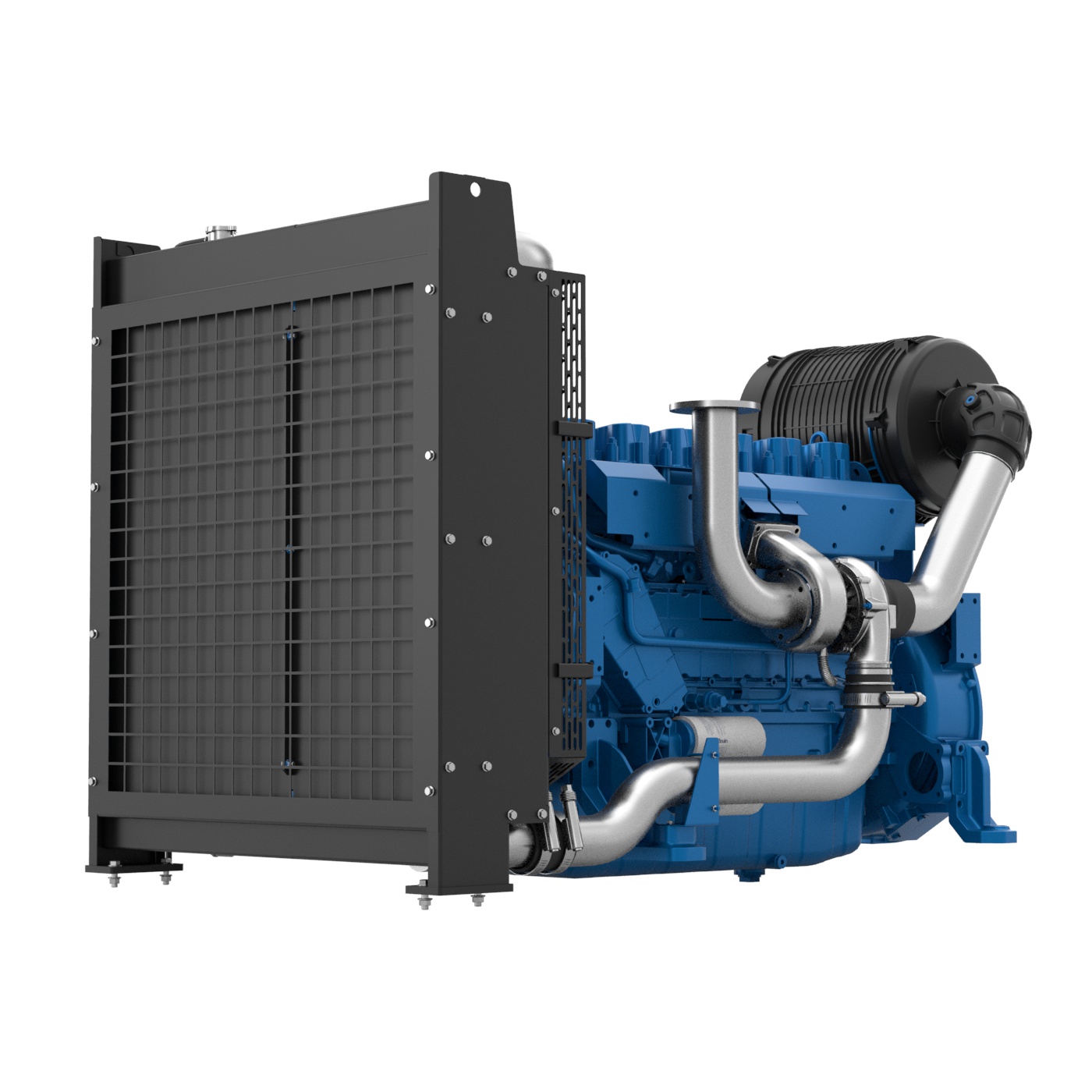

The Baudouin 6M16 PowerKit Engine is a 6-cylinder inline diesel engine designed for both prime and standby power generation. This engine series is optimized for industrial, marine standby, generator-set, and OEM applications, delivering high reliability, superior power density, and excellent serviceability. Its robust design ensures long-term performance in demanding operational environments.
Key Features
- Cylinders: 6 inline
- Bore & Stroke: 126 x 130 mm
- Total Displacement: 9.7 liters
- Fuel System: High-pressure common rail
- Governor: Electronic for precise speed and load control
- Aspiration: Turbocharged or turbocharged with air-to-air aftercooling
- Durable & Service-Friendly: Designed for extended service intervals and easy maintenance
Technical Specifications
| Power Output (PRP) | 50 Hz: – 6M16G220/5: 160 kWe / 220 kVA – 6M16G250/5: 184 kWe / 250 kVA – 6M16G275/5: 200 kWe / 275 kVA – 6M16G350/5: 256 kWe / 350 kVA 60 Hz: – 6M16G200/6: 180 kWe / 250 kVA – 6M16G220/6: 200 kWe / 275 kVA – 6M16G250/6: 227 kWe / 313 kVA |
|---|---|
| Engine Type | 6-cylinder inline, 4-stroke diesel |
| Bore & Stroke | 126 x 130 mm |
| Total Displacement | 9.7 liters |
| Engine Rotation | Counterclockwise |
| Rated Speed | 1500 RPM (50 Hz) / 1800 RPM (60 Hz) |
| Fuel System | High-pressure common rail injection |
| Aspiration | Turbocharged / Turbocharged with air-to-air aftercooling |
| Emissions | Generator set compliant, depending on regional requirements |
| Dimensions (L x W x H) | Approximately 1800 x 750 x 1300 mm (PowerKit configuration) |
| Dry Weight | Approximately 1,200–1,250 kg (engine only) |
Applications
The Baudouin 6M16 PowerKit Engine is ideal for:
- Industrial and commercial generator sets
- Prime and standby power systems
- Marine auxiliary and offshore generators
- OEM generator set solutions
Certifications & Standards
- Designed to meet ISO 3046 performance and reliability standards
- Certified for continuous and standby generator duty cycles
