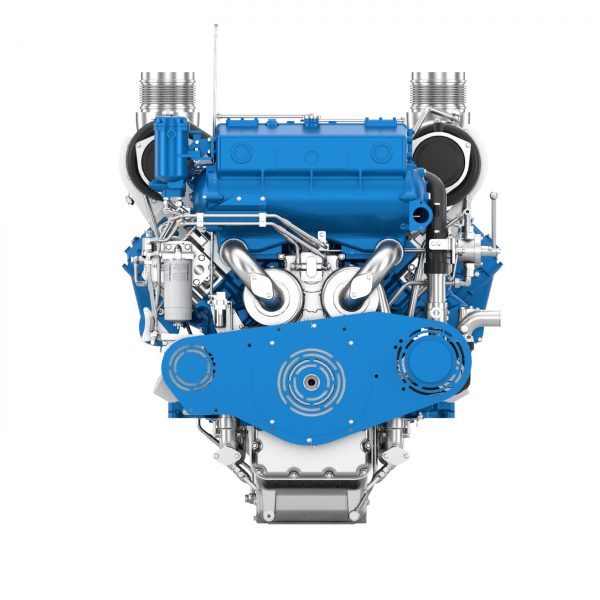

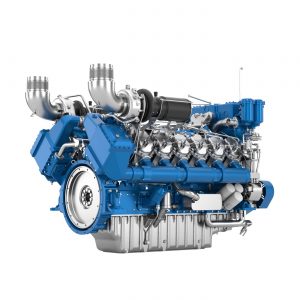

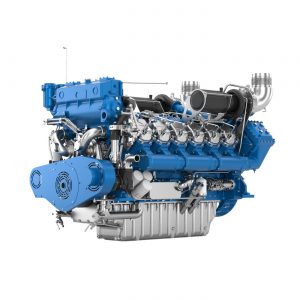

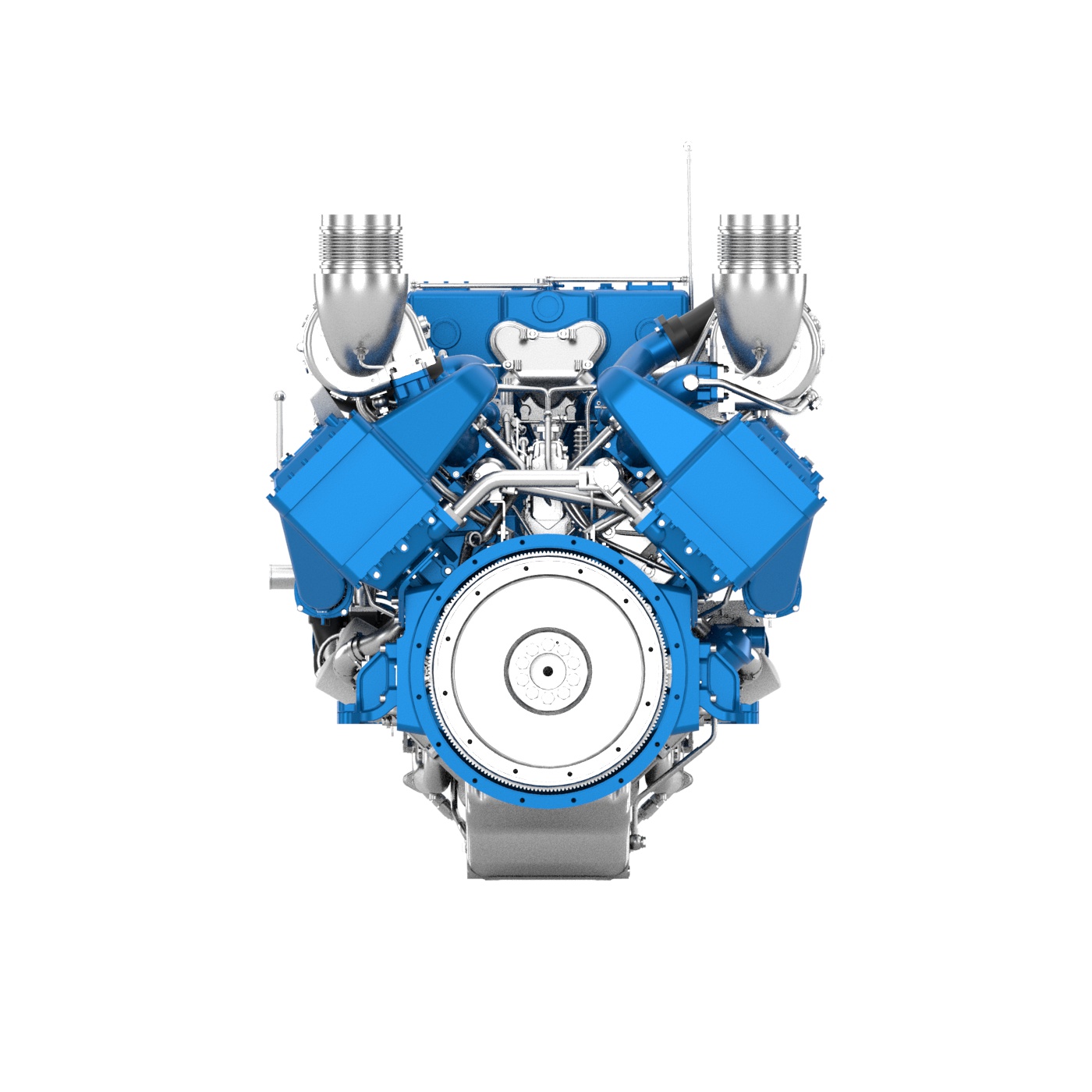

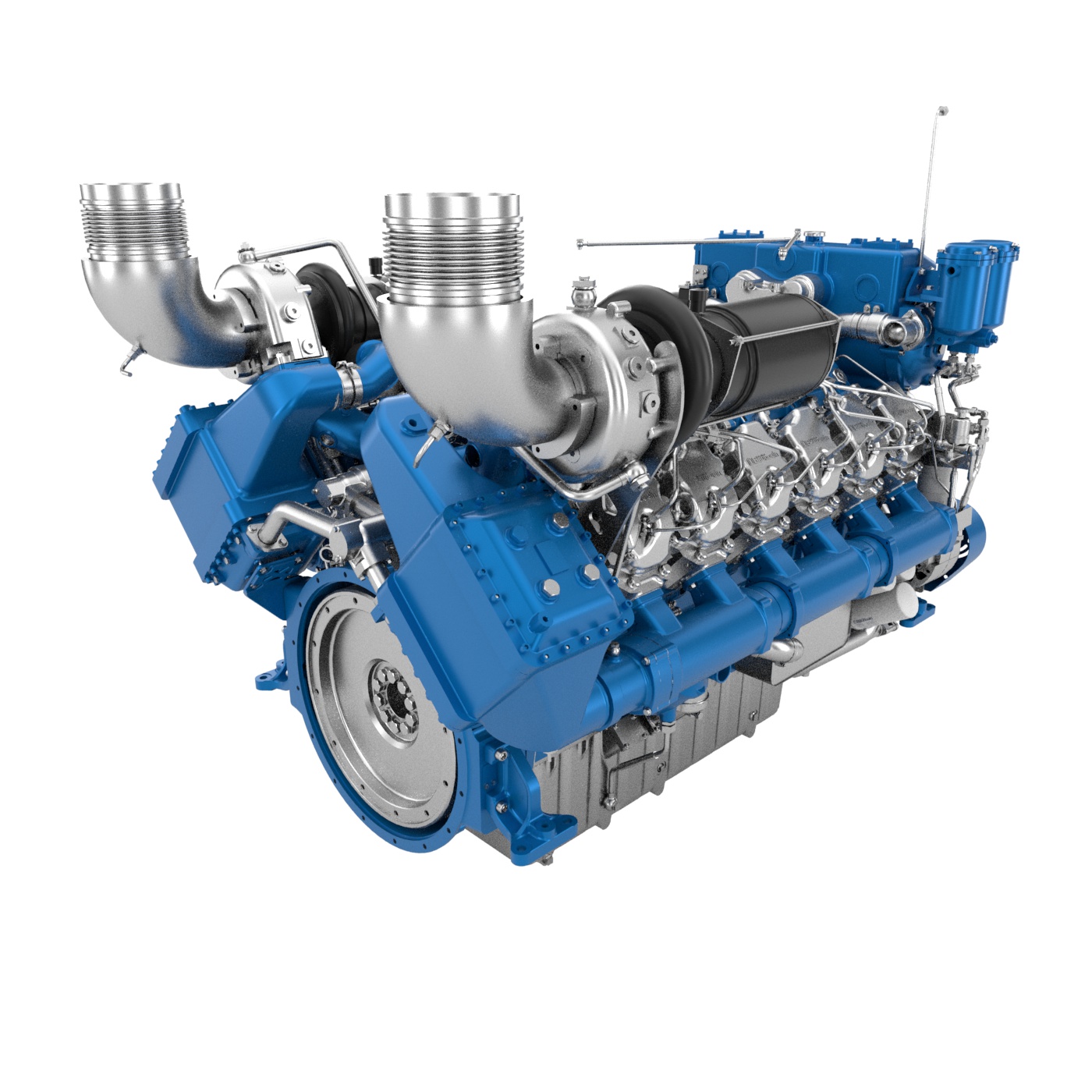

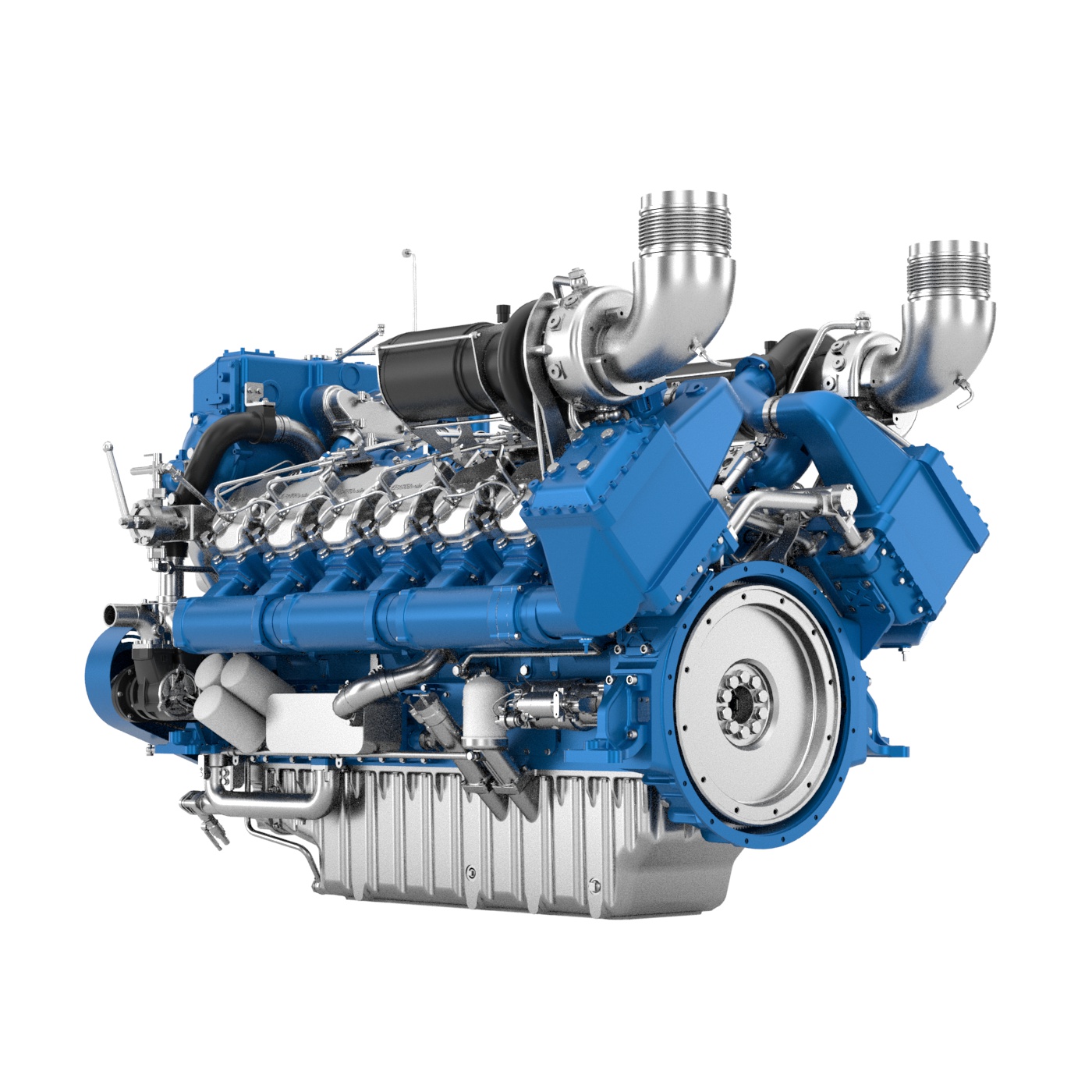

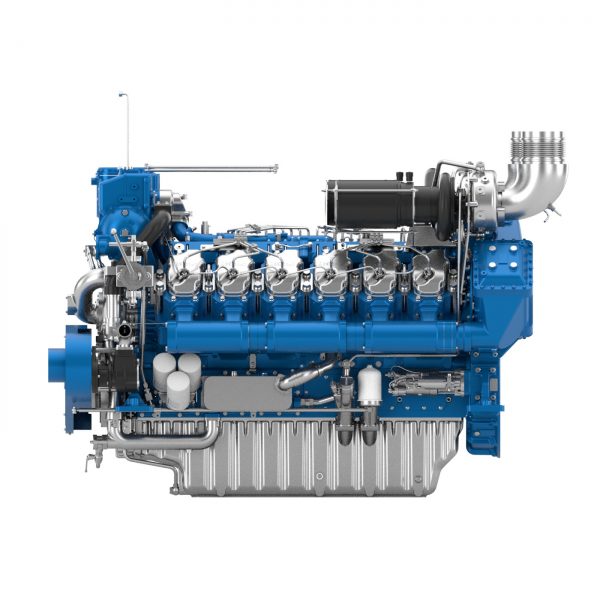

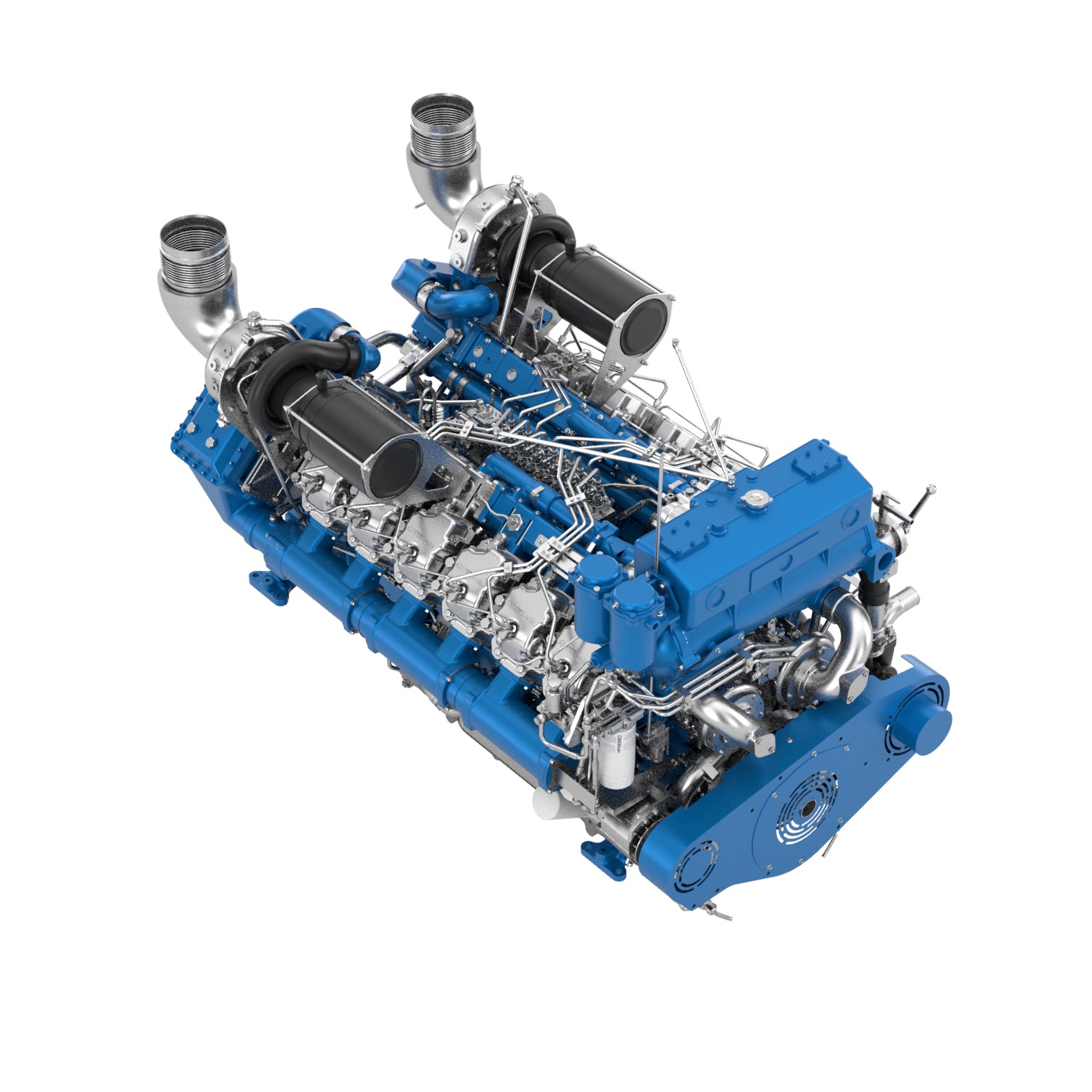

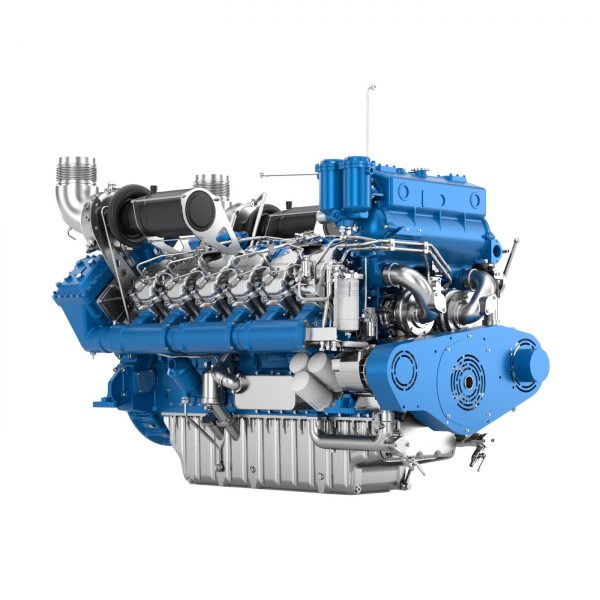

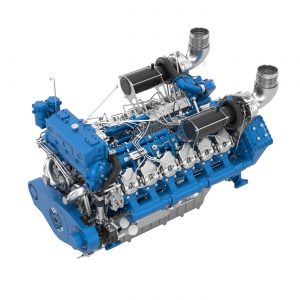

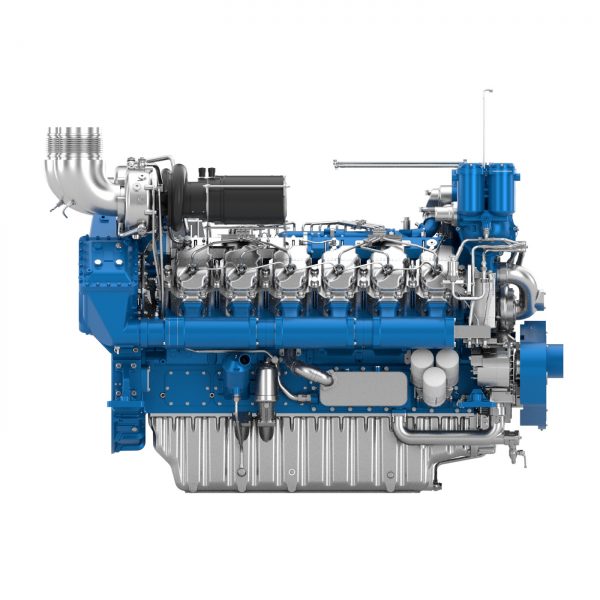

The Baudouin Marine Engine 12M33.2 is a 12-cylinder V-configuration diesel engine designed for high-performance marine propulsion. It delivers exceptional power and efficiency, making it ideal for demanding maritime applications.
Key Features
- High power output with optimized fuel consumption.
- Robust design ensuring durability and long service life.
- Advanced cooling system for efficient temperature management.
- Compliance with IMO II emission standards.
- Electronic control for precise engine management.
P2 Duty Cycle
- Application: Continuous
- Engine Load Variations: Numerous
- Average Engine Load Factor: 30% – 80%
- Annual Working Time: 3,000 – 5,000 hours
- Time at Full Load: Up to 8 hours per 12-hour period
Technical Specifications
| Power Output | 1,500 HP (1,104 kW) at 1,800 RPM |
|---|---|
| Engine Speed | 1,800 RPM |
| Fuel Consumption | 210 g/kWh at 100% load |
| Number of Cylinders | 12 (V-configuration) |
| Total Displacement | 39.2 liters |
| Bore & Stroke | 150 mm x 185 mm |
| Compression Ratio | 15:1 |
| Engine Rotation | Counterclockwise (ISO 1204 standard) |
| Idle Speed | 650 RPM |
| Flywheel Housing | SAE 0 |
| Flywheel | SAE 18” |
| Cooling System | Heat exchanger with freshwater and raw water cooling |
| Lubrication System | Full-flow oil filters with integrated oil cooler |
| Fuel System | Electronic common rail injection |
| Electrical System | 24V, electric starter, 190A alternator |
Operating Conditions Baudouin Marine Engine 12M33.2
- Ambient Temperature: 25°C (77°F) – Max: 45°C (113°F)
- Barometric Pressure: 100 kPa
- Relative Humidity: 30% R
- Raw Water Temperature: 25°C (77°F) – Max: 32°C (90°F)
- Fuel Density: 0.840 ± 0.005 kg/L
- Lower Calorific Power: 42,700 kJ/kg
Applications
The Baudouin Marine Engine 12M33.2 is suitable for various marine applications, including:
- Commercial vessels
- Offshore support vessels
- Tugboats
- Patrol boats
