Product Overview

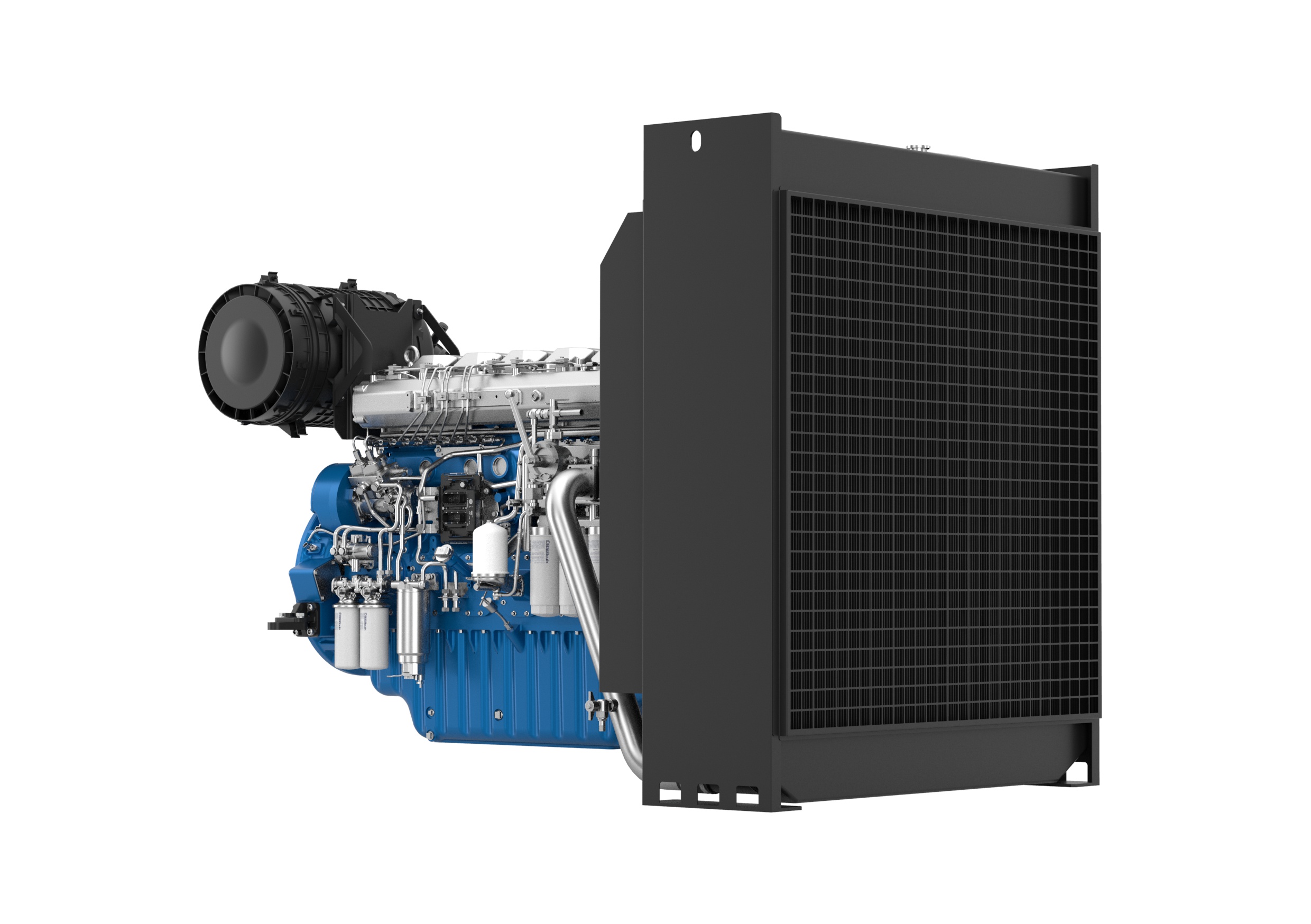

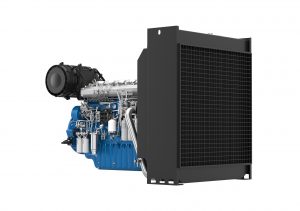

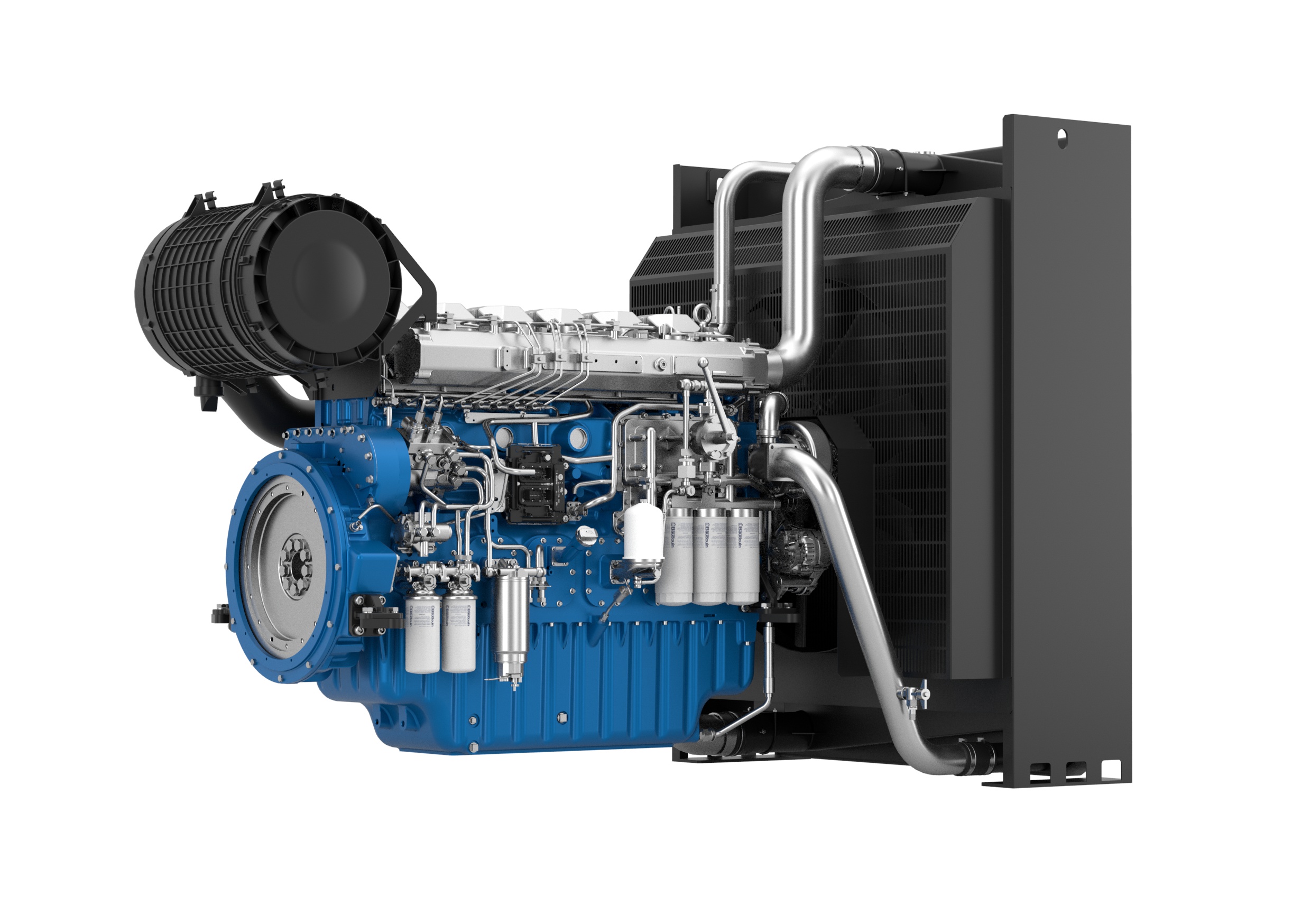

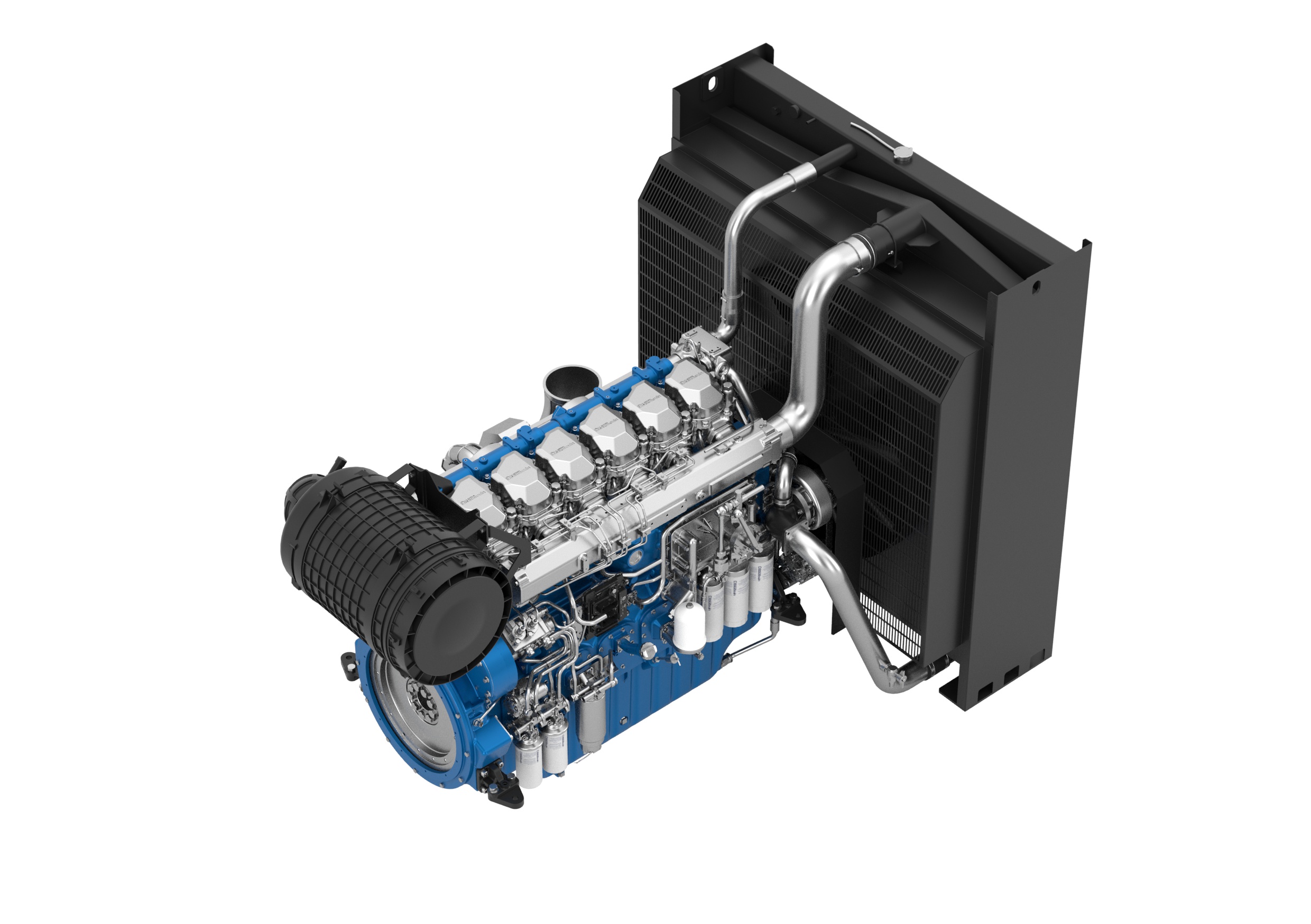

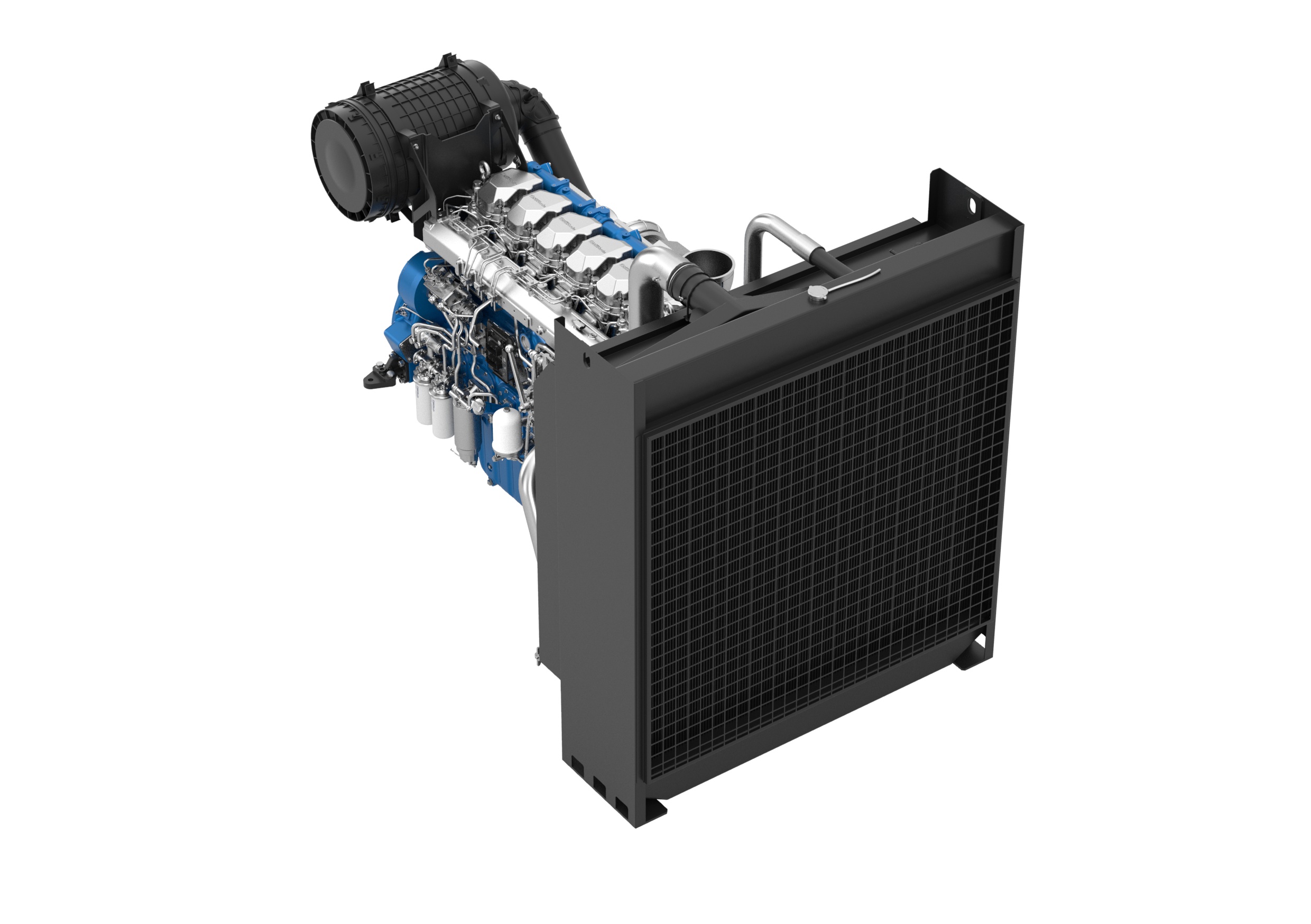

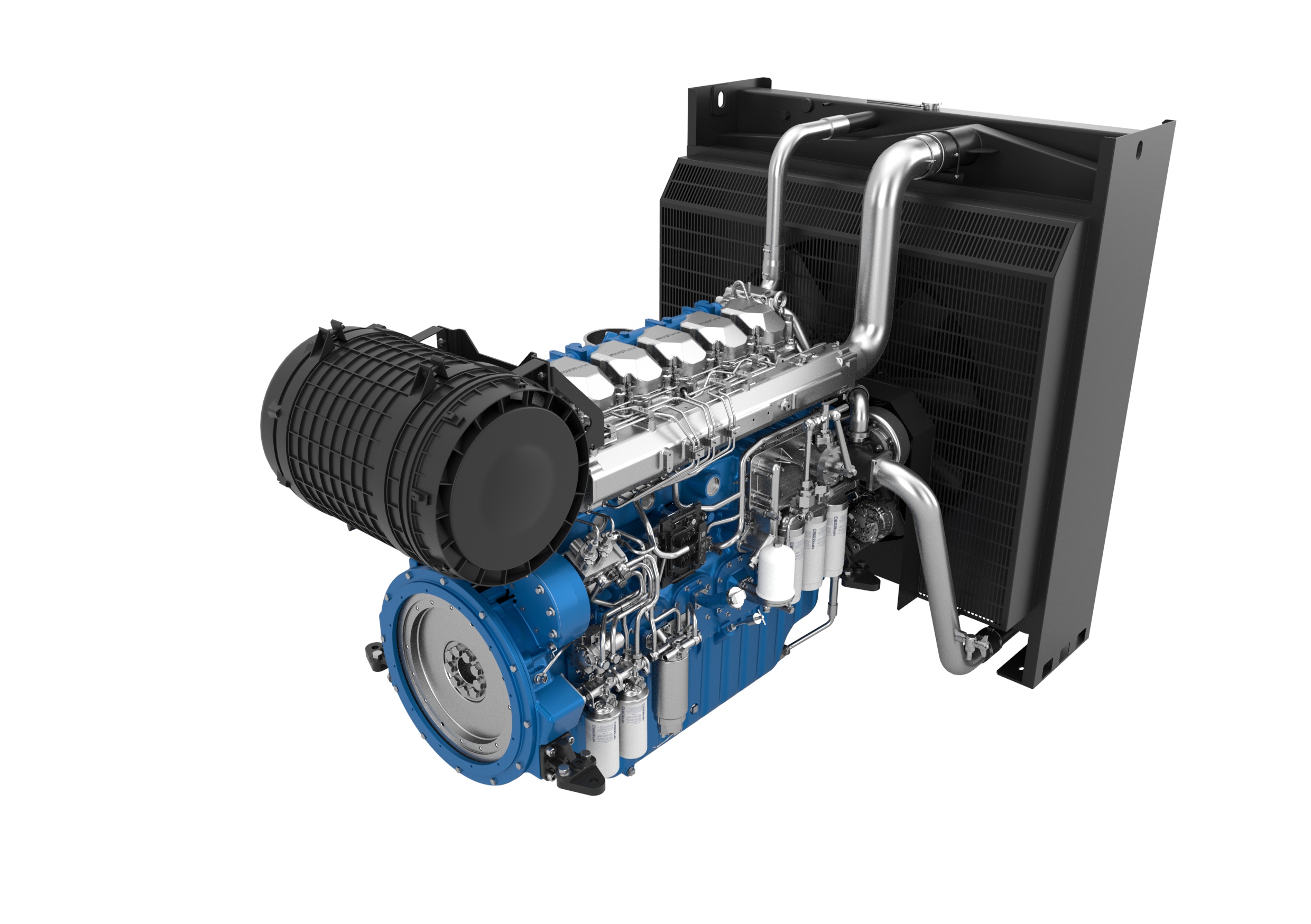

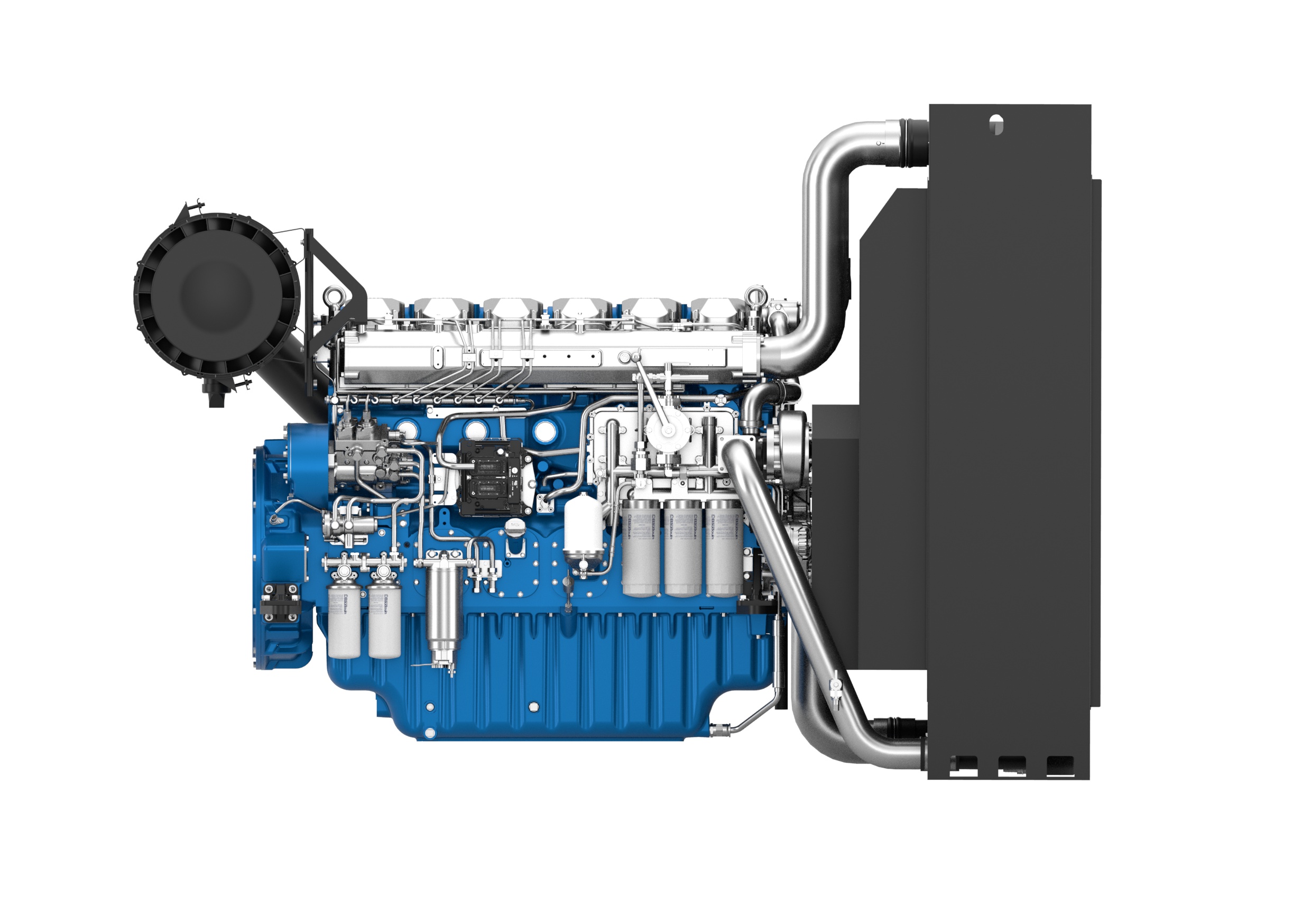

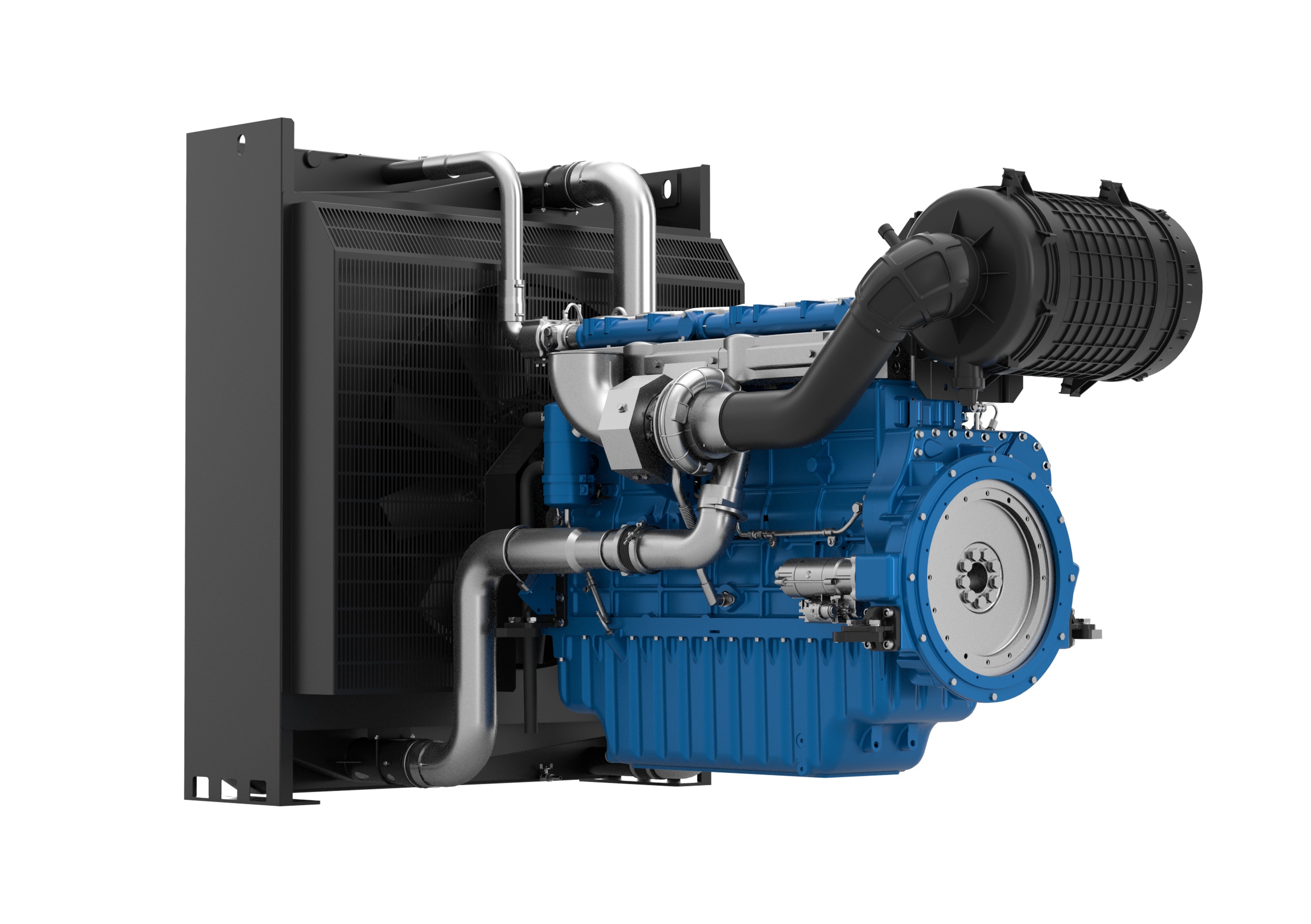

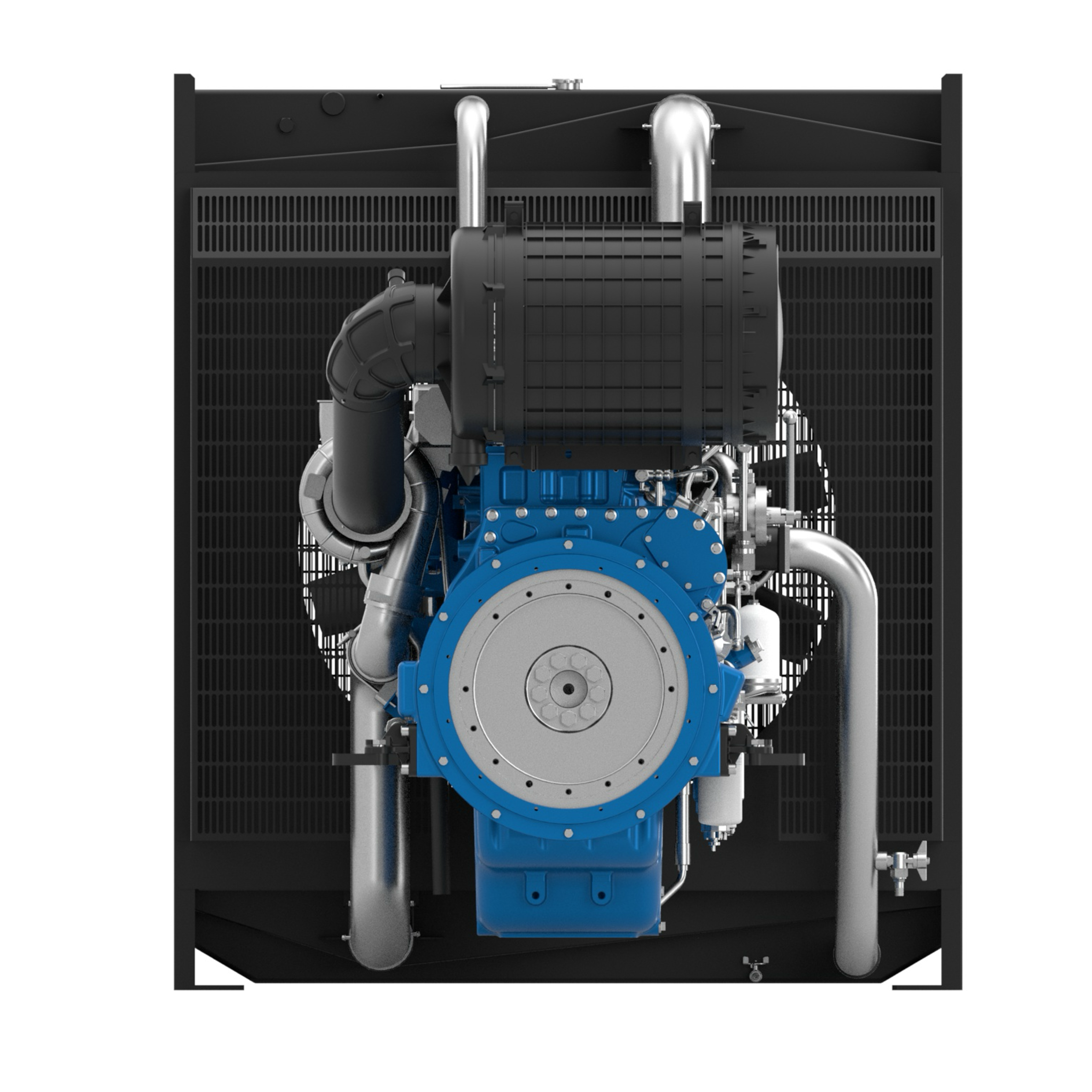

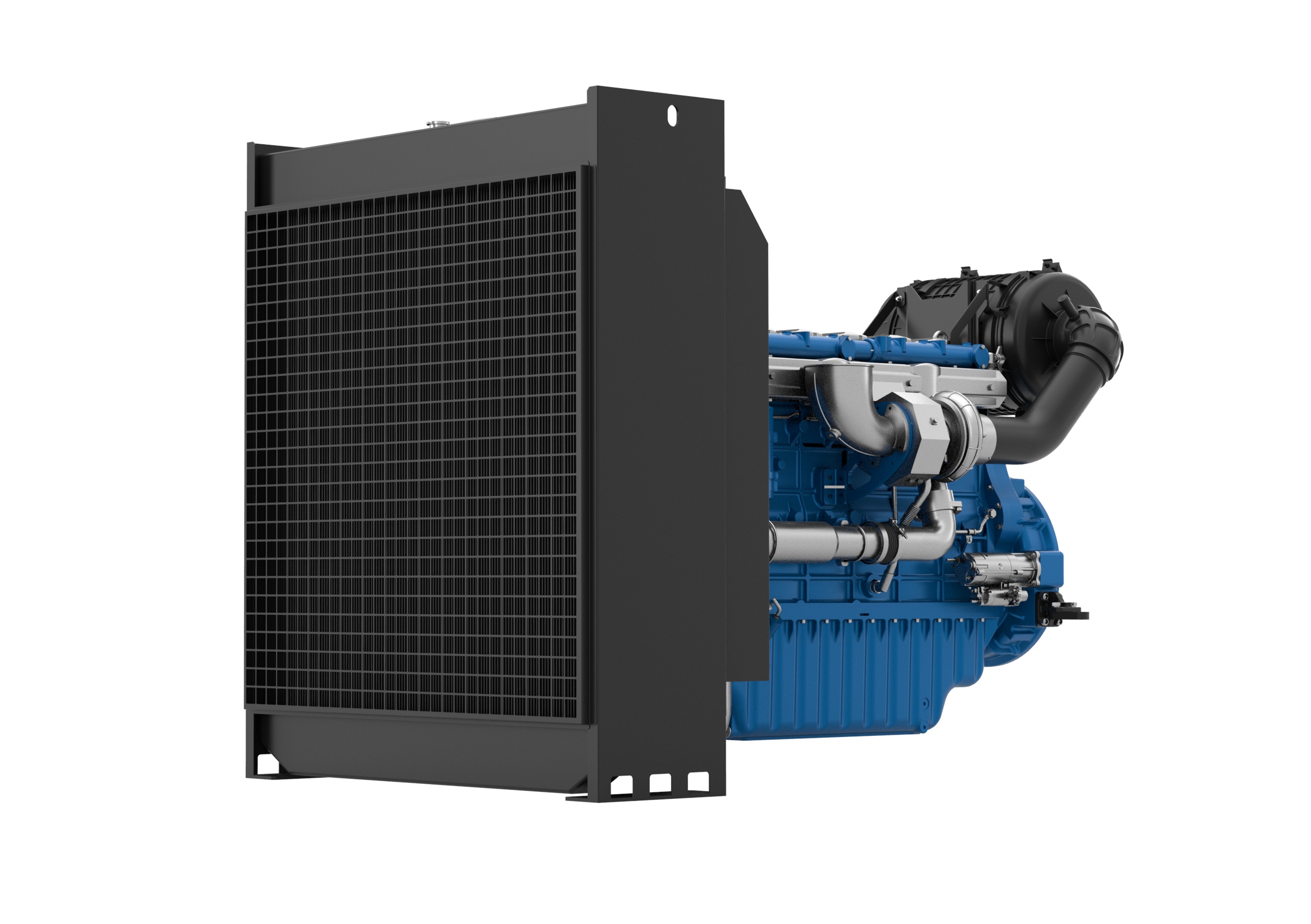

The Baudouin 6M33 PowerKit Engine is a high-capacity 6-cylinder inline diesel engine engineered for demanding prime and standby power generation applications. Designed for industrial, marine standby, generator-set, and OEM use, the 6M33 series delivers exceptional power density, long-term reliability, and ease of serviceability. Its heavy-duty architecture and advanced air management make it suitable for continuous operation in high-load environments.
Key Features
- Cylinders: 6 inline
- Bore & Stroke: 150 x 185 mm
- Total Displacement: 19.60 liters
- Fuel System: Mechanical or high-pressure common rail
- Governor: Electronic / ECU-controlled
- Aspiration: Turbocharged with air-to-air aftercooling
- Heavy-Duty Design: Optimized for high-output prime and standby power generation
Technical Specifications
| Power Output (PRP) | 50 Hz: – 6M33G660/5: 480 kWe / 660 kVA – 6M33G715/5: 520 kWe / 715 kVA – 6M33G750/5: 544 kWe / 750 kVA – 6M33G825/5: 600 kWe / 825 kVA 60 Hz: – 6M33G575/6: 520 kWe / 719 kVA – 6M33G600/6: 550 kWe / 750 kVA – 6M33G633/6: 575 kWe / 791 kVA – 6M33G660/6: 600 kWe / 825 kVA |
|---|---|
| Engine Type | 6-cylinder inline, 4-stroke diesel |
| Bore & Stroke | 150 x 185 mm |
| Total Displacement | 19.60 liters |
| Engine Rotation | Counterclockwise |
| Rated Speed | 1500 RPM (50 Hz) / 1800 RPM (60 Hz) |
| Fuel System | Mechanical or high-pressure common rail injection |
| Aspiration | Turbocharged with air-to-air aftercooling |
| Emissions | Generator set compliant, depending on configuration and regional requirements |
| Dimensions (L x W x H) | Approximately 2300 x 900 x 1550 mm (PowerKit configuration) |
| Dry Weight | Approximately 2,300–2,500 kg (engine only) |
Applications
The Baudouin 6M33 PowerKit Engine is ideal for:
- Industrial and commercial generator sets
- Prime power and continuous-duty installations
- Marine auxiliary and offshore standby generators
- OEM high-capacity power generation solutions
Certifications & Standards
- Designed to meet ISO 3046 performance and reliability standards
- Approved for continuous and standby generator duty cycles
