Product Overview

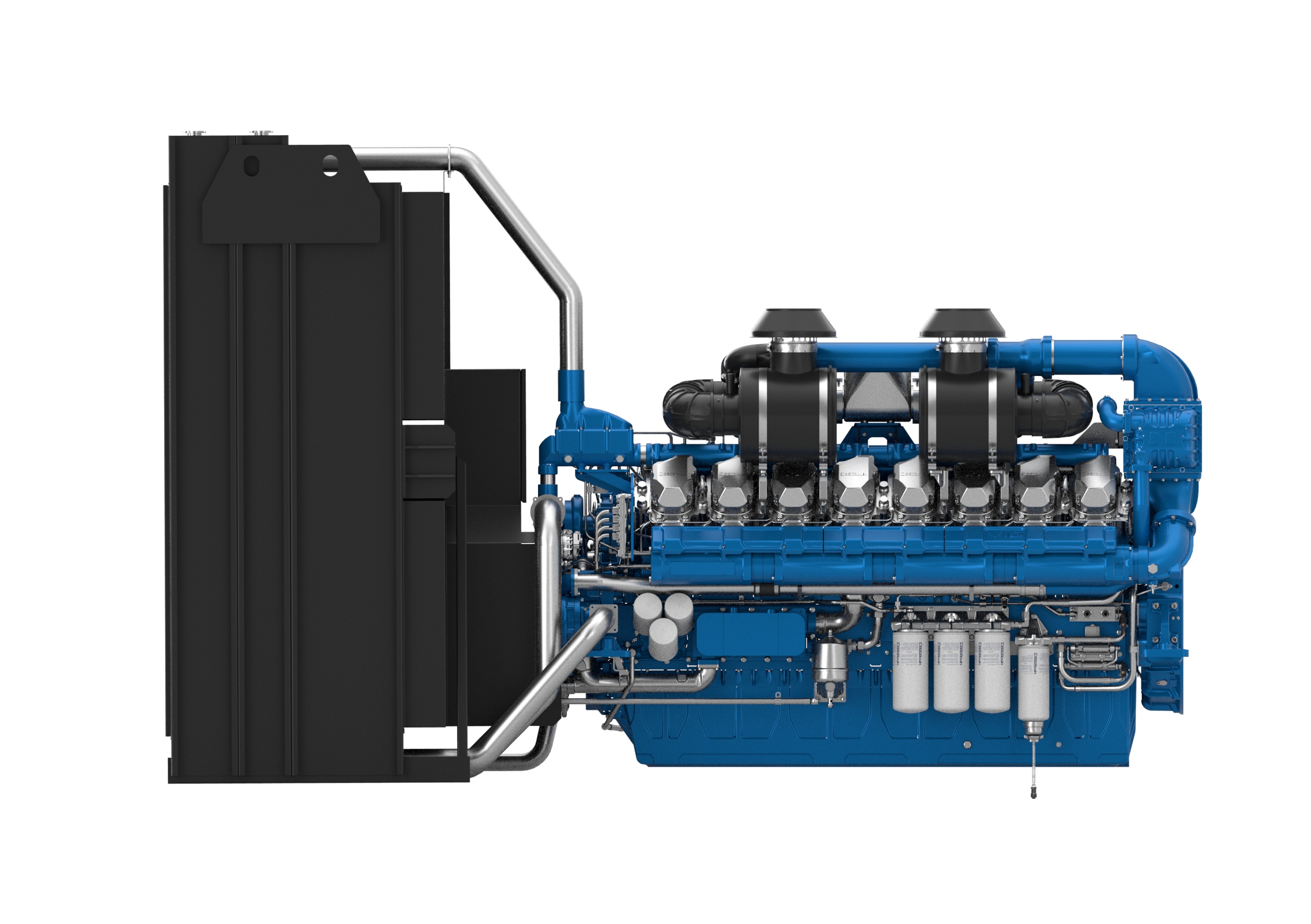

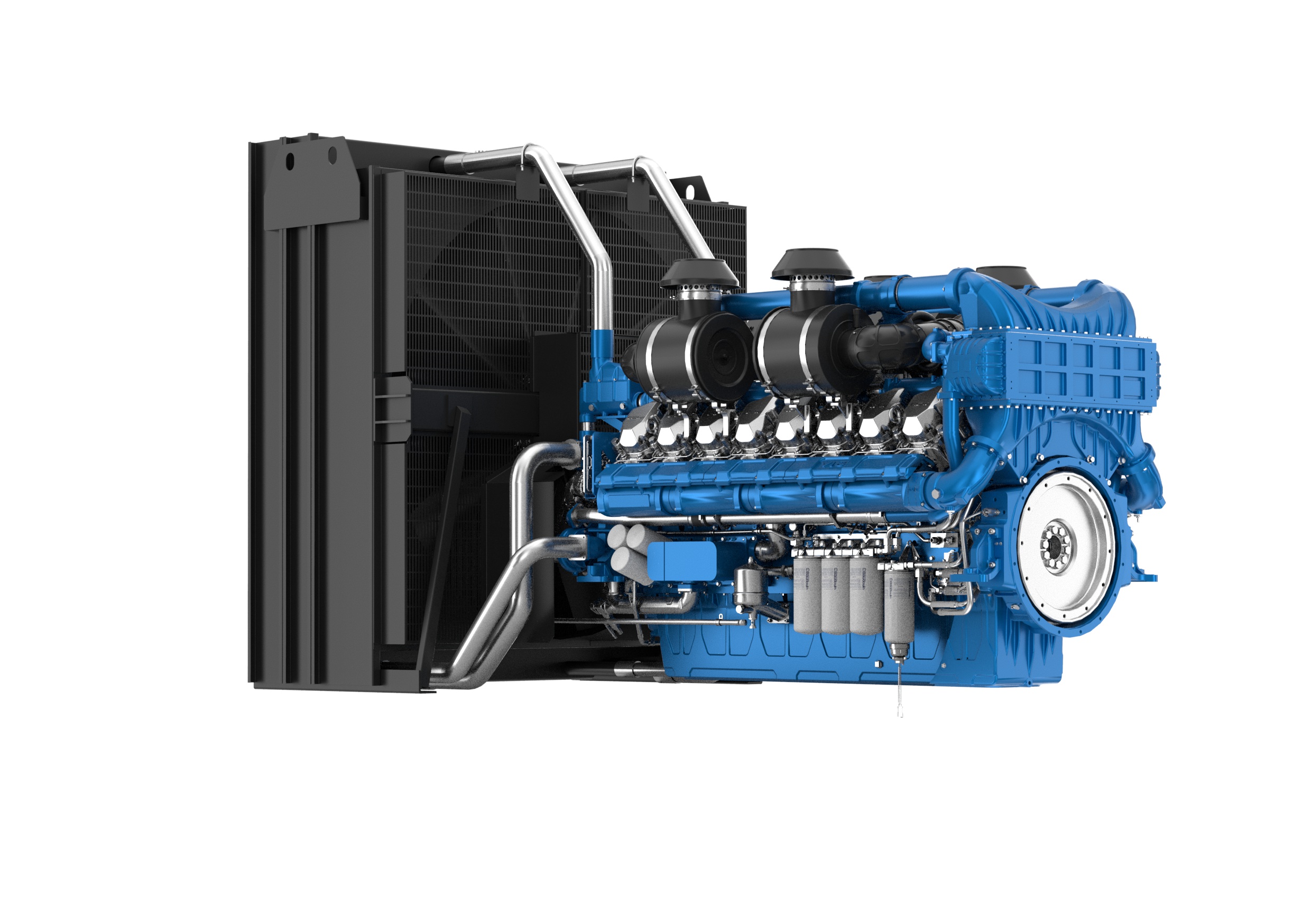

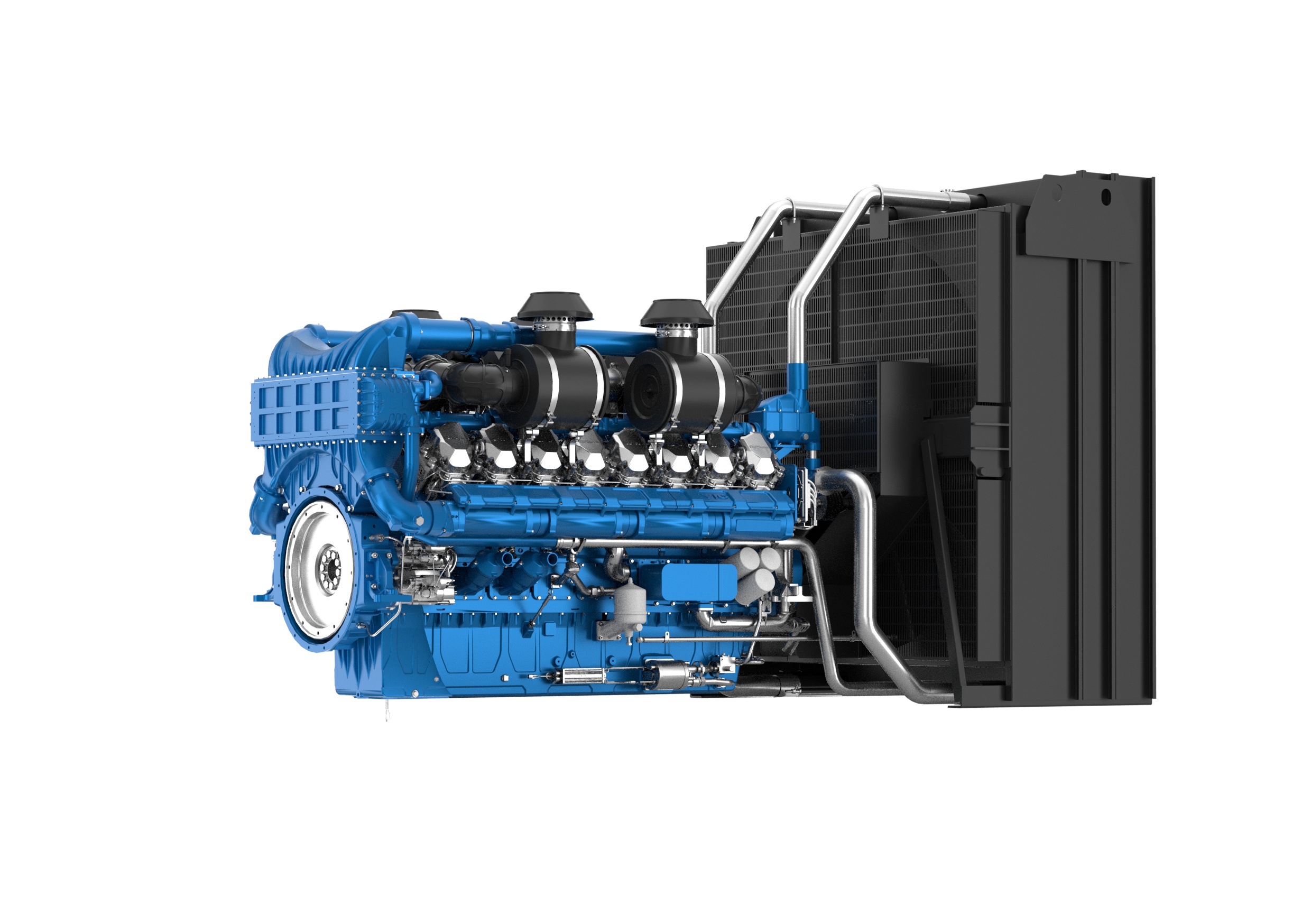

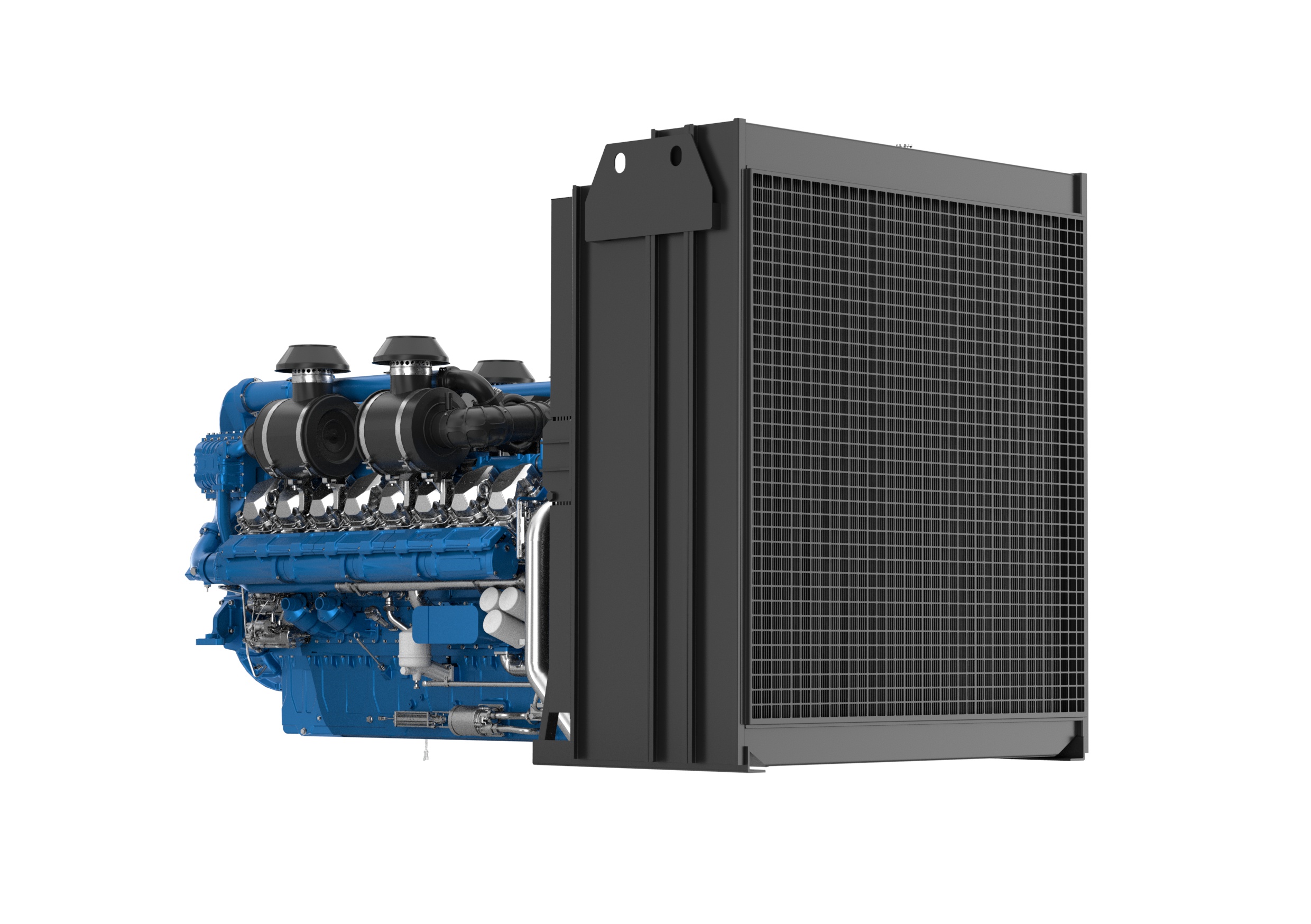

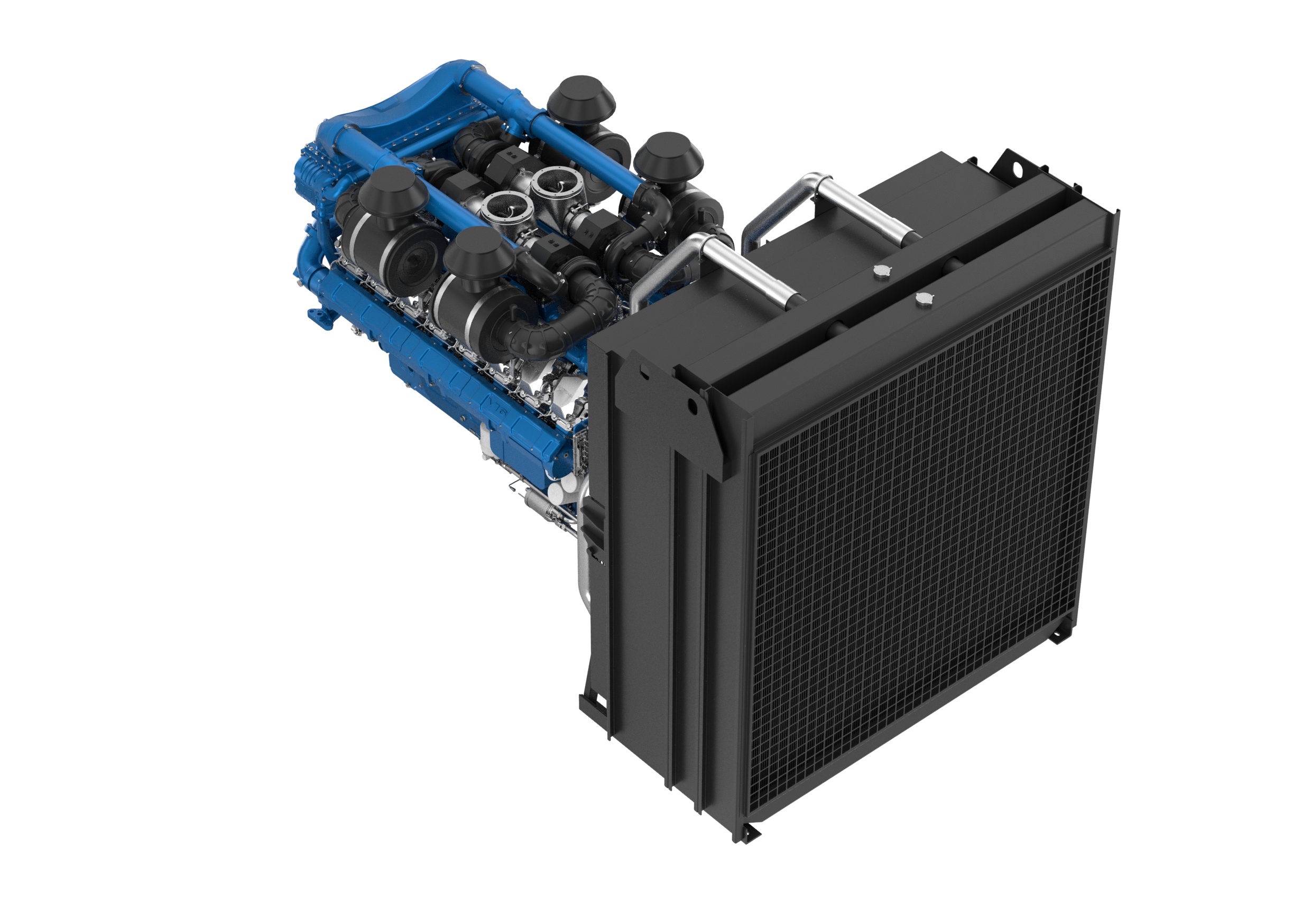

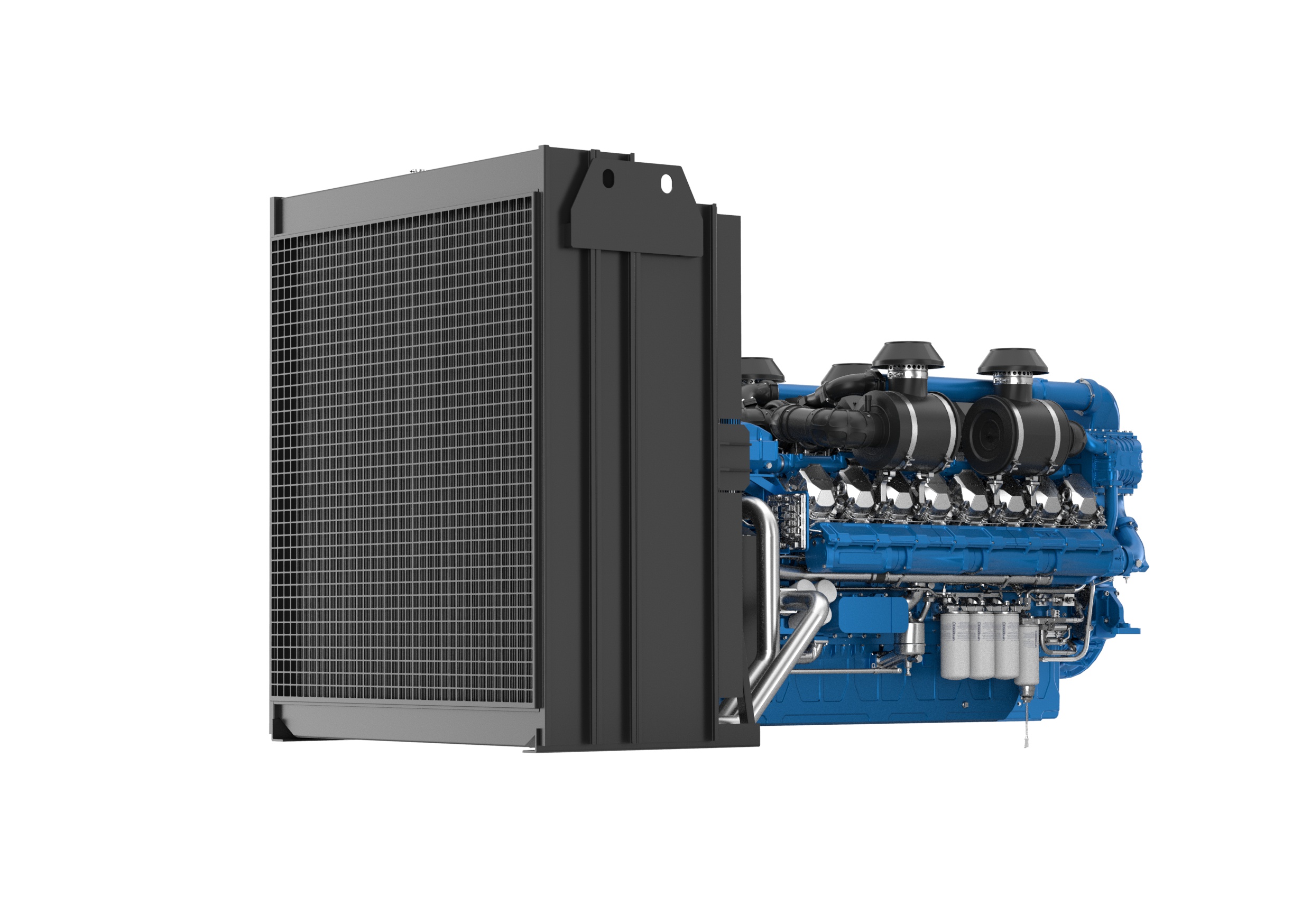

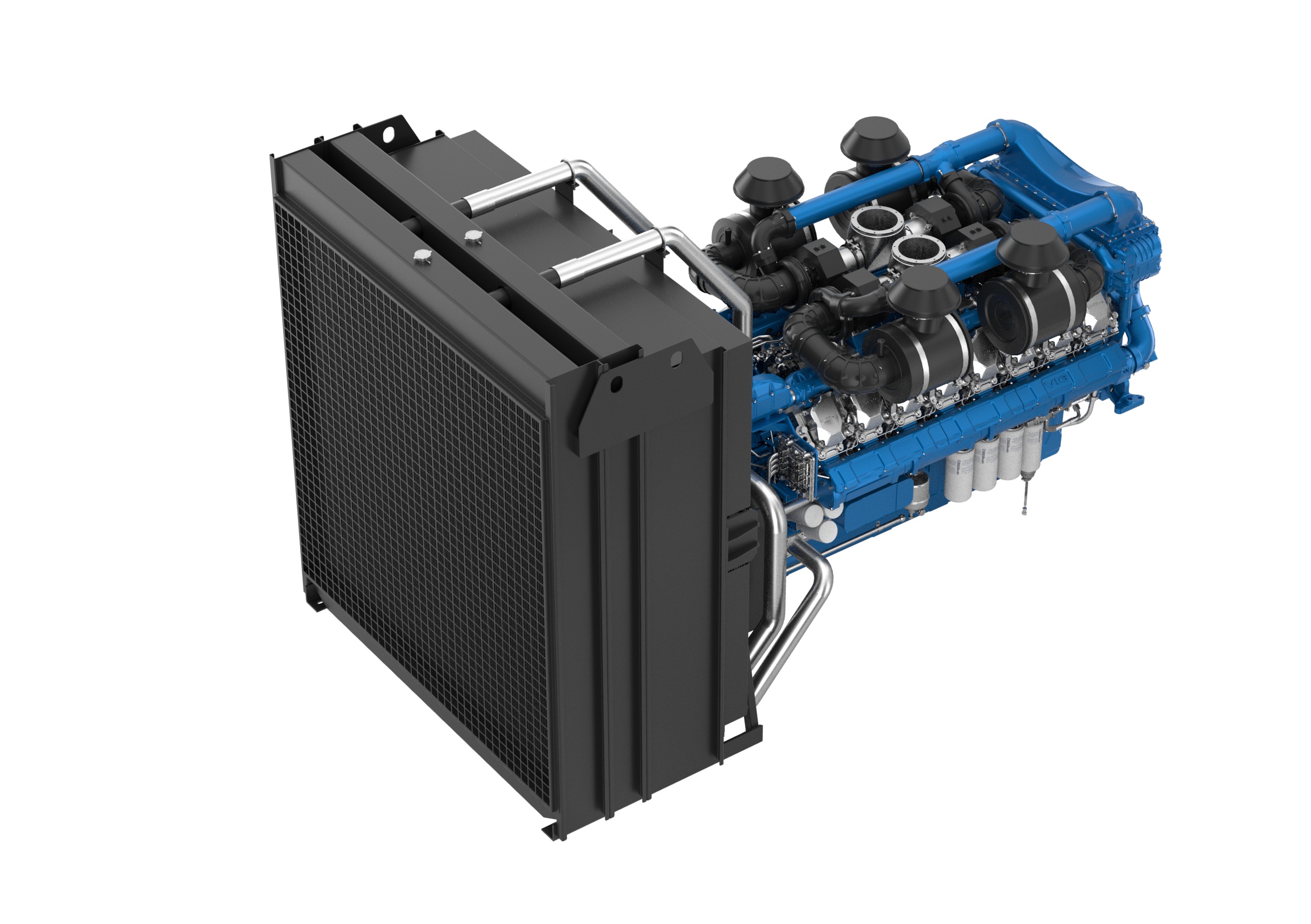

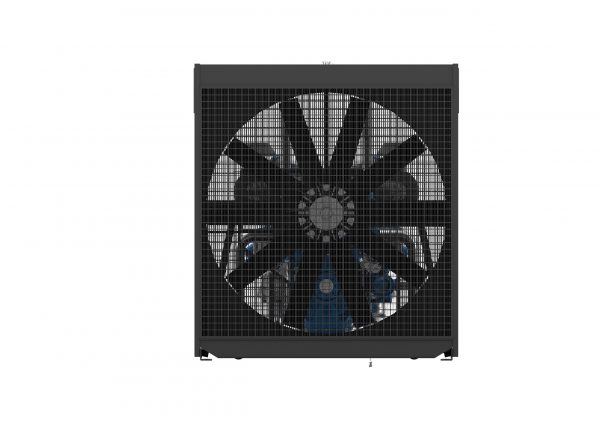

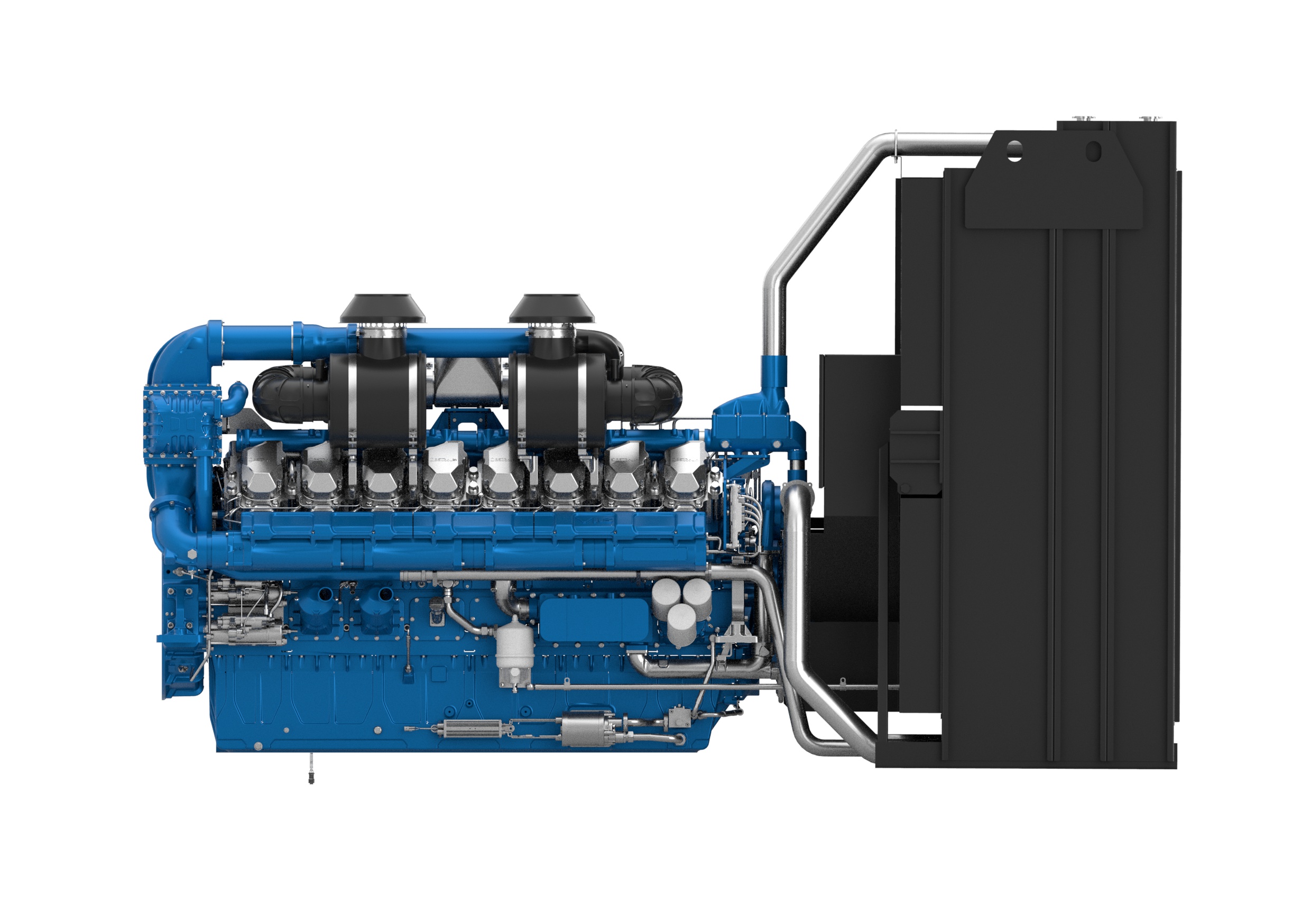

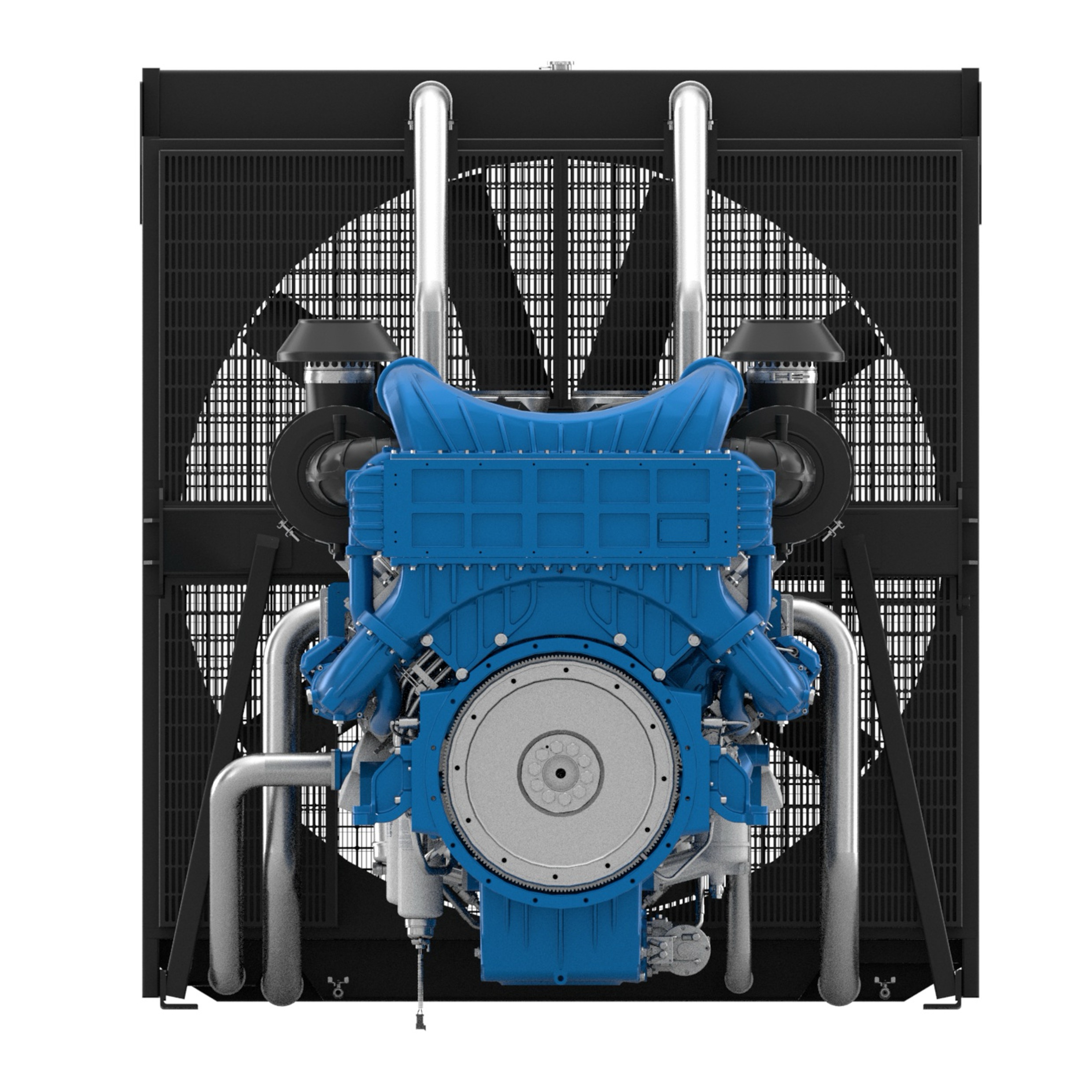

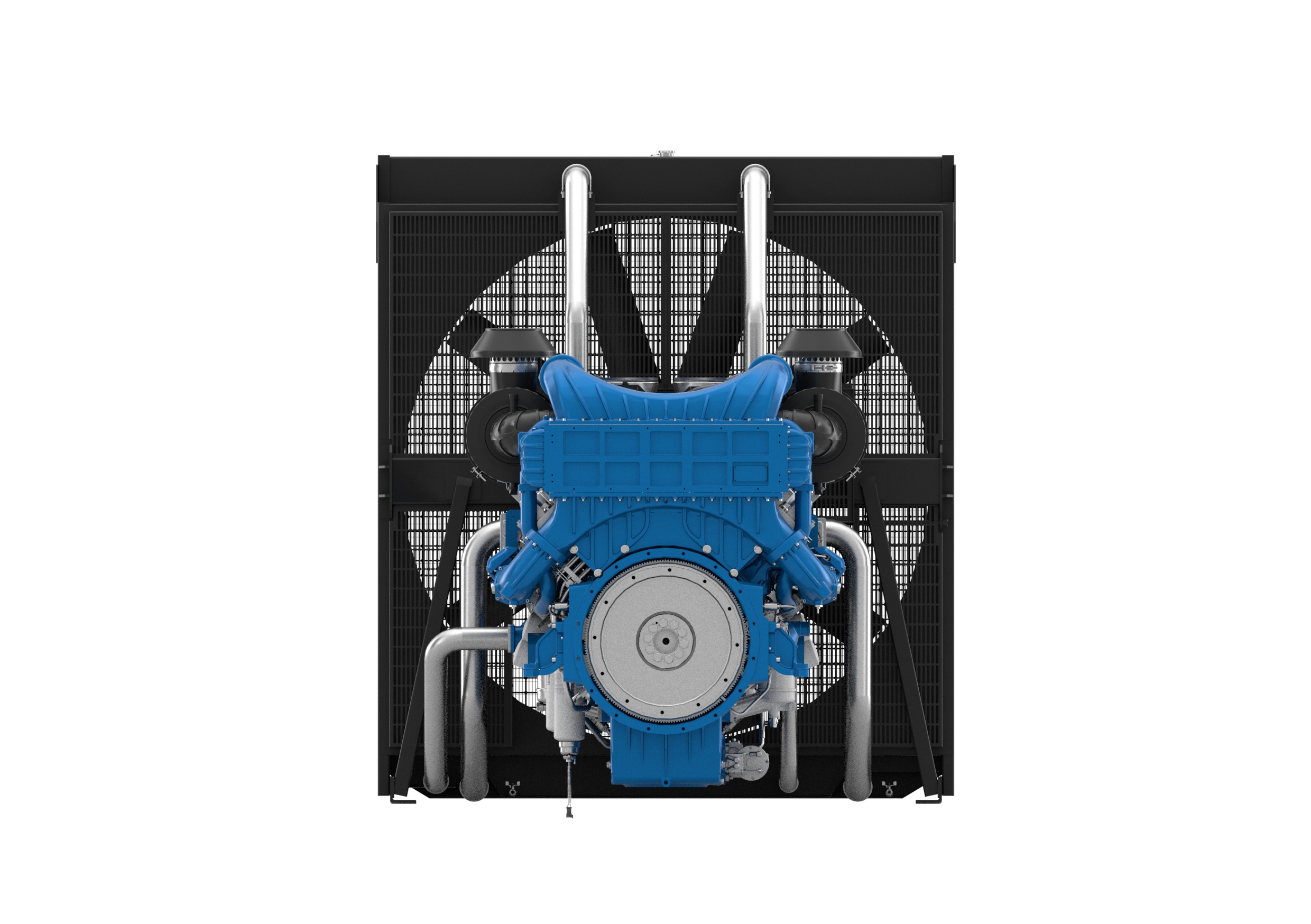

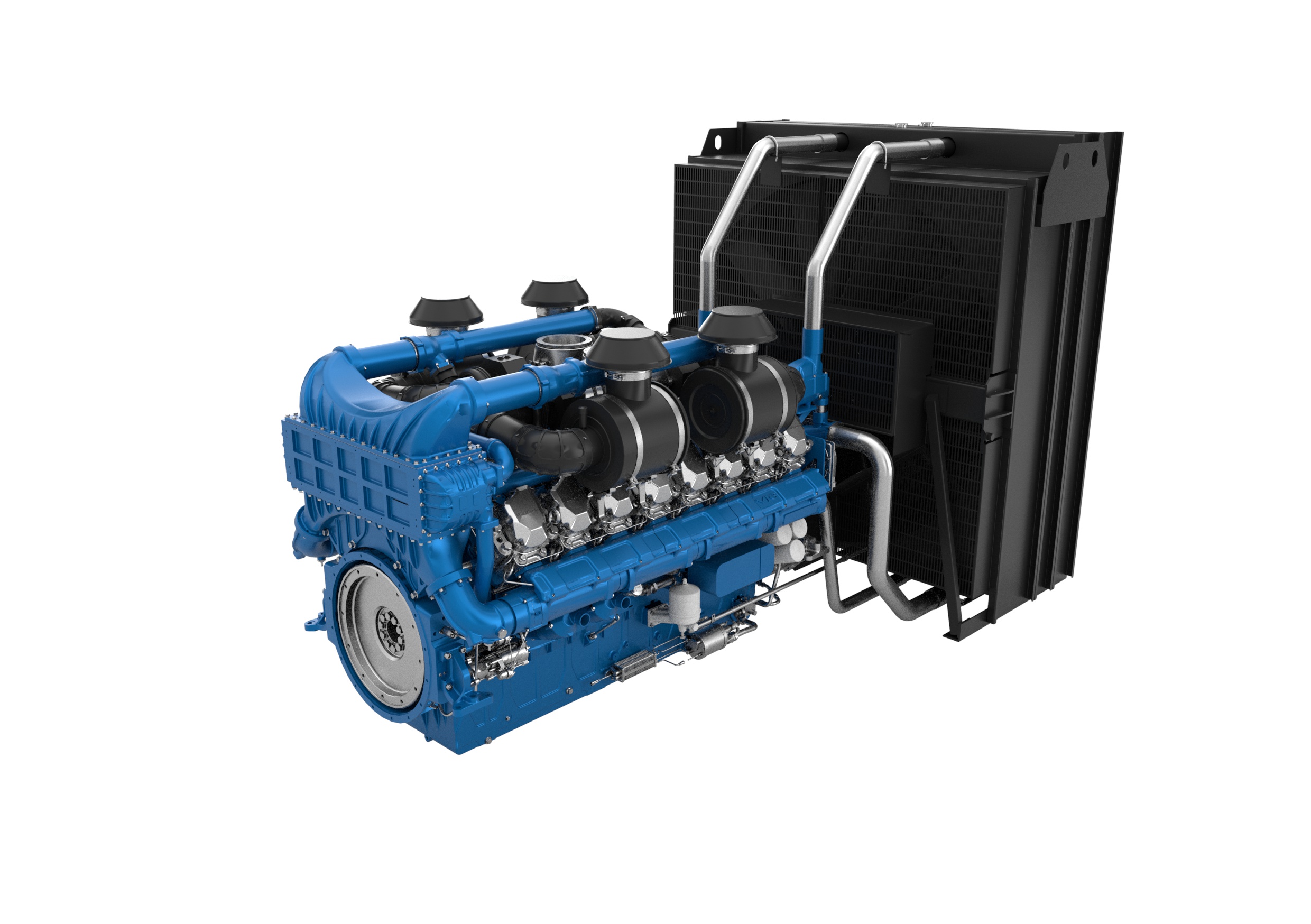

The Baudouin 16M33 PowerKit Engine is a heavy-duty industrial diesel engine engineered for high-capacity generator applications.
Designed with a robust multi-cylinder architecture and optimized for both 50Hz and 60Hz systems, the 16M33 series delivers dependable power outputs ranging from 1200kWe to 1650kWe PRP.
Its configuration supports continuous operation for industrial, commercial, and utility-scale power generation.
Ratings & Performance
| Model | Frequency | Engine Power (kWm ESP) | Generator Rating (kVA ESP) | Power Output (kWe PRP) |
|---|---|---|---|---|
| 16M33G1700/5 | 50Hz | 1530 | 1700 | 1200 |
| 16M33G1900/5 | 50Hz | 1680 | 1900 | 1400 |
| 16M33G2000/5 | 50Hz | 1800 | 2000 | 1464 |
| 16M33G2250/5 | 50Hz | 1980 | 2250 | 1650 |
| 16M33G1400/6 | 60Hz | 1580 | 1750 | 1275 |
| 16M33G1500/6 | 60Hz | 1680 | 1875 | 1365 |
| 16M33G1650/6 | 60Hz | 1785 | 2063 | 1500 |
| 16M33G1750/6 | 60Hz | 1920 | 2188 | 1590 |
Key Features
- High-Capacity Output: Up to 1650kWe PRP for industrial and utility power applications.
- Flexible Frequency Compatibility: Available in both 50Hz and 60Hz configurations.
- Optimized Fuel Efficiency: Engineered for strong thermal performance and operational stability.
- Heavy-Duty Engine Block: Built to support continuous operation in demanding conditions.
- Wide Power Range: Multiple configurations to match generator sizes from 1700kVA to 2250kVA ESP.
- Reliable Operation: Ideal for prime power, emergency standby, and continuous generation.
Applications
- High-capacity generator sets
- Industrial plant power supply
- Commercial large-scale backup systems
- Utility and grid-support operations
- Continuous duty power plants
Why Choose the 16M33 PowerKit Engine?
- Scalable Power: Designed for projects requiring 1MW–1.6MW of reliable output.
- Strong Mechanical Architecture: Stable performance under sustained high loads.
- International Compatibility: Designed for both 50Hz and 60Hz power networks.
- Full OEM Support: Available through Xanthis with documentation and spare parts.
- Designed for Mission-Critical Installations: Trusted for industrial and utility infrastructures.
Maintenance & Service
- Adhere to manufacturer service intervals for optimal performance.
- Regular inspection of fuel, lubrication, and cooling systems is recommended.
- Use approved lubricants and diesel qualities.
- Consult operator manuals for operating procedures and technical guidance.
Support & Spare Parts
- Original Baudouin spare parts via Xanthis distribution network
- Technical documentation and manuals included
- Commissioning and field service available on request
- Long-term maintenance contracts available
Conclusion
The Baudouin 16M33 PowerKit Engine delivers exceptional performance for large-scale generator systems, supporting output levels up to 1590kWe PRP.
Robust engineering and compatibility across 50Hz and 60Hz applications make it a powerful choice for utility, industrial, and commercial environments that demand continuous, dependable energy.
