Download PDFDescription
The Weichai WP6 Series Marine Diesel Engine is engineered for high-performance applications in marine environments. With power outputs ranging from 103 kW to 168 kW, it is suitable for various vessels, including passenger ships, cargo boats, and fishing vessels.
Key Features
- Durability: Features a robust design with high-strength engine components, ensuring long-term reliability and reduced maintenance intervals.
- Fuel Efficiency: Incorporates advanced fuel injection systems and turbocharging technology to optimize fuel consumption, offering a wide economic operation range.
- Performance: Delivers high torque at low speeds, providing excellent starting and acceleration capabilities to meet diverse operational demands.
- Compliance: Meets China non-road Stage III emission standards, contributing to environmental sustainability without compromising performance.
P2 Duty Cycle
- Application: Continuous
- Engine Load Variations: Varies per model specifications
- Average Engine Load Factor: Varies per model specifications
- Annual Working Time: Varies per model specifications
- Time at Full Load: Varies per model specifications

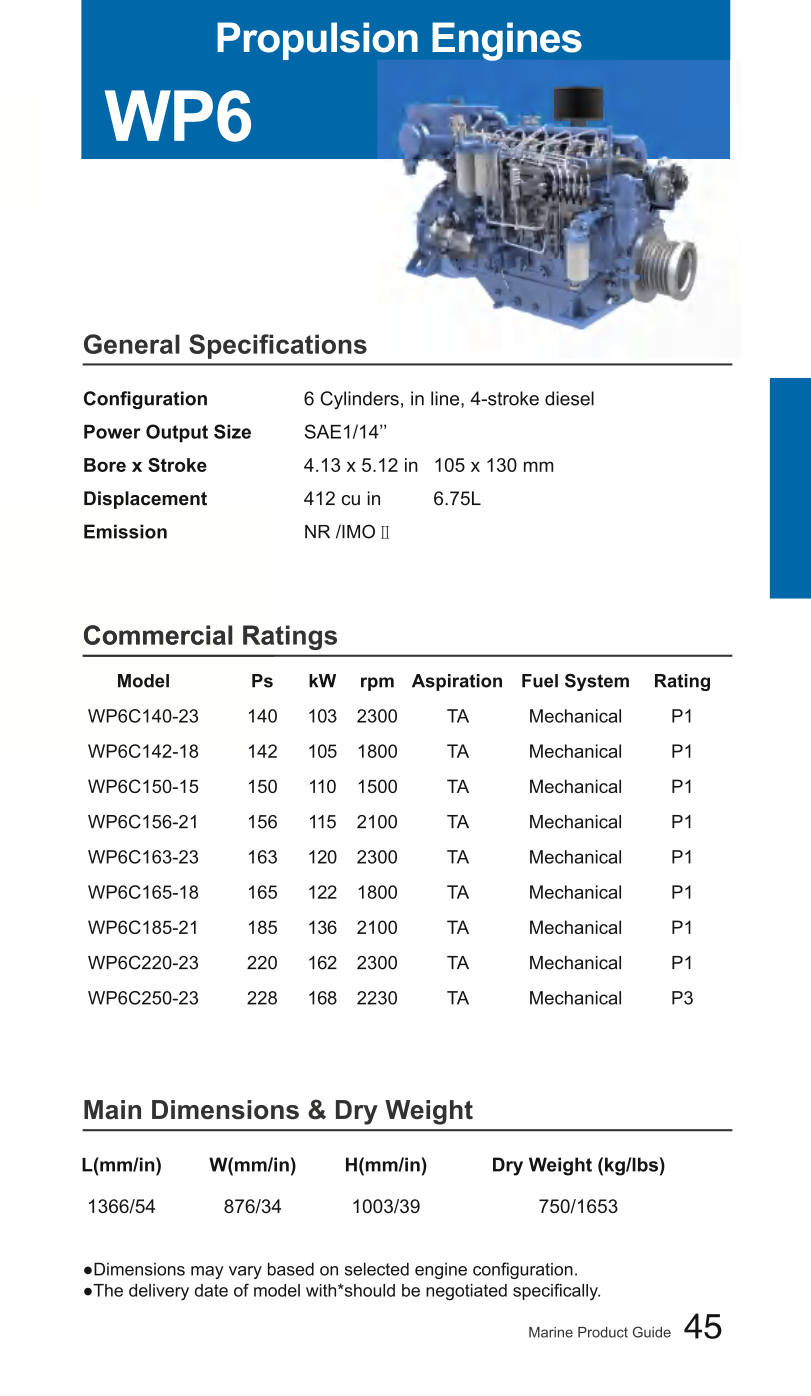

Technical Specifications
| Model | WP6 Series |
|---|---|
| Type | 6 Cylinders, in line, 4-stroke diesel |
| Displacement | 6.75 liters |
| Bore x Stroke | 105 mm x 130 mm |
| Rated Power | 168 kW (226hp) at 2,230 RPM |
| Fuel System | In-line injection pump |
| Emission Standard | China non-road Stage III |
| Idle Speed | Approximately 650 RPM |
| Rotation (facing the flywheel) | Counter-clockwise |
| Dimensions (L x W x H) | Approximately 1,366 mm x 876 mm x 1,003 mm |
| Dry Weight | Approximately 750 kg |
Operating Conditions
- Ambient Temperature: 25°C (77°F)
- Barometric Pressure: 100 kPa
- Relative Humidity: 30%
Applications
The Weichai WP6 Series Marine Diesel Engine is ideal for the following applications:
- Passenger ships
- Cargo boats
- Fishing vessels
- Inland river transport ships
